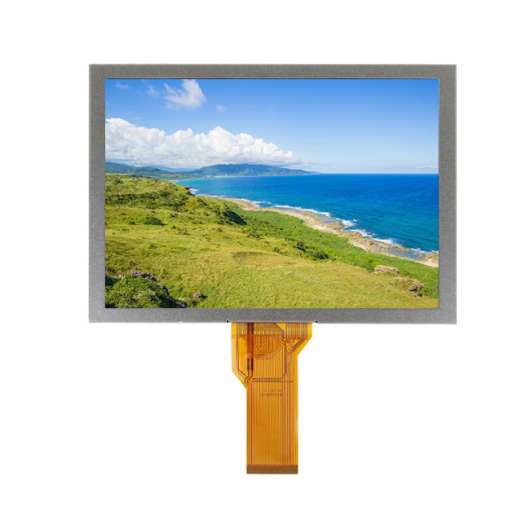

1.TIANMA P0800WVF1MA00 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0800WVF1MA00Diagonal Size8.0"Applicatio...
| Model | P0800WVF1MA00 |
| Brand | TIANMA |
| Size | 8.0inch |
| Resolution | 800*480 |
| Brightness | 1300cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P0800WVF1MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0800WVF1MA00
Diagonal Size
8.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
TM080RDGP01-00
Reliability :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
Srgb,Wide Temperature,Ultra High Brighness,WLED Backlight,Life≥100K hour，With LED Driver，180° Reverse, Matte
2.TIANMA P0800WVF1MA00 Mechanical Details
Pixel Features :
Pixel Format
800(RGB)×480 [WVGA]
Dot Pitch (W×H)
0.0725×0.2175 mm
Configuration
RGB Vertical Stripe
Pixel Pitch (W×H)
0.2175×0.2175 mm [116PPI]
Mechanical Size :
Active Viewing
174(W)×104.4(H) mm
Bezel Opening
177(W)×107.4(H) mm
Overall Dim.
192(W)×122(H) mm
Outline Depth
7.5/9.4 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style
Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
235g (Typ.)
Surface
Antiglare, Hard coating
3.TIANMA P0800WVF1MA00 Optical Details
Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
27 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.316; Wy:0.318
Color Numbers
16.7M (8-bit)
Color Temperature
6409K
White Uniformity
1.43 (Typ.)(9 points)
1931 Color Gamut :
NTSC Ratio
82%
sRGB
99% coverage
Adobe RGB
80% coverage
DCI-P3
86% coverage
Rec.2020
61% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4.TIANMA P0800WVF1MA00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P0800WVF1MA00 Backlight Details
Back-light Features:
Lamp Shape
3 strings
Lamp Type
WLED
Life Time
100K(Min.) (Hours)
Replacement
-
Amount
7S3P
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
JAE
FI-S6P-HFE
1.25 mm
6 pins
1 pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.0V
Input Current
520mA (Typ.)
Consumption
6.24W (Typ.)
6.TIANMA P0800WVF1MA00 Interface Details
Signal Systerm :
LVDS (1 ch, 6/8-bit)
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Consumption
363mW (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-SEB20P-HFE
1.25 mm
20 pins
1 pcs
