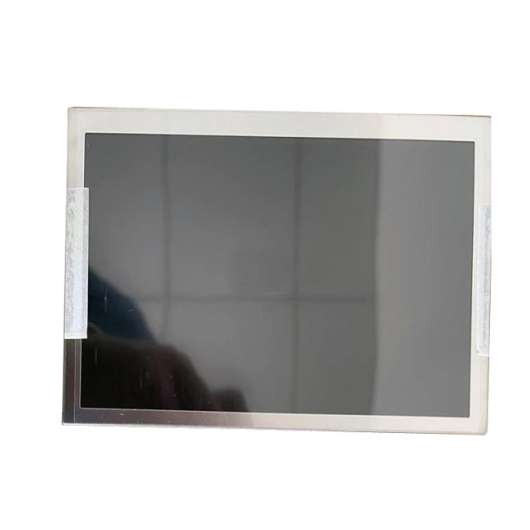

1.TIANMA P0700WVN1MB01 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0700WVN1MB01Diagonal Size7.0"Applicatio...
| Model | P0700WVN1MB01 |
| Brand | TIANMA |
| Size | 7.0inch |
| Resolution | 800*480 |
| Brightness | 450cd/m2 |
| Perspective | 80/80/60/80 (Typ.) |
| Interface | TTL |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P0700WVN1MB01 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0700WVN1MB01
Diagonal Size
7.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight，U/D,L/R Reverse，Matte
2. TIANMA P0700WVN1MB01 Mechanical Details
Pixel Features :
Pixel Format
800(RGB)×480 [WVGA]
Dot Pitch
0.0642×0.1790 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1926×0.1790 mm (H×V) [134PPI]
Mechanical Size :
Display Area
154.08×85.92 mm (H×V)
Bezel Area
157.08×89.39 mm (H×V)
Outline Dim.
164.9×100 mm (H×V)
Outline Depth
5.7±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Other Features :
Weight
160g (Typ.)
Surface
Antiglare
3. TIANMA P0700WVN1MB01 Optical Details
Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
15 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.319; Wy:0.345
Color Numbers
16.7M (8-bit)
Color Temperature
6088K
White Uniformity
1.18/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
53%
sRGB
73% coverage
Adobe RGB
56% coverage
DCI-P3
55% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P0700WVN1MB01 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
1.736W
5. TIANMA P0700WVN1MB01 Backlight Details
Back-light Features:
Lamp Shape
Array
Lamp Type
WLED
Life Time
45K(Min.) (Hours)
Replacement
-
Amount
3S8P
Position
Edge light type
Lamp Electrical :
Voltage Input
9.6±0.6V
Current Input
160/200mA (Typ./Max.)
Consumption
1.54/2.16W (Typ./Max.)
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
No
6. TIANMA P0700WVN1MB01 Interface Details
Signal Systerm :
TTL (1 ch, 8-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/10.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Current Input
10/30/0.3/0.3mA (Max.)(ICC/AIDD/IGH/IGL)
Consumption
200mW (Typ.)
Interface Features :
Type
FPC
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
0.5 mm
50 pins
1 pcs
7. TIANMA P0700WVN1MB01 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
20
1
520×345×74
N/A
0.0133
Outer box
60
3
544×365×250
14.20
0.0496
