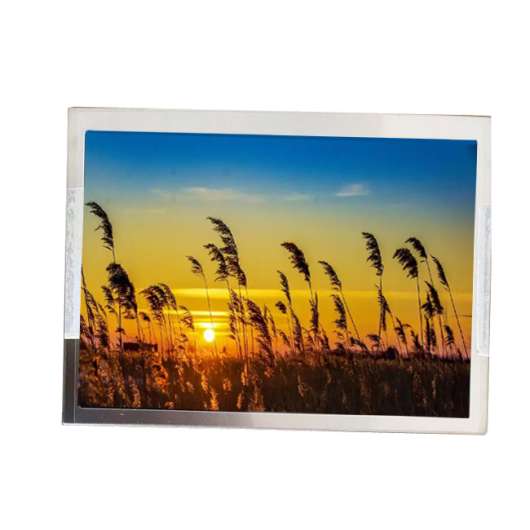

1.TIANMA P0700WVN1ME01 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0700WVN1ME01Diagonal Size7.0"Applicatio...
| Model | P0700WVN1ME01 |
| Brand | TIANMA |
| Size | 7.0inch |
| Resolution | 800*480 |
| Brightness | 300cd/m2 |
| Perspective | 80/80/60/80 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P0700WVN1ME01 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0700WVN1ME01
Diagonal Size
7.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight,U/D,L/R Reverse,6/8bit,Matte
2. TIANMA P0700WVN1ME01 Mechanical Details
Pixel Features :
Pixel Format
800(RGB)×480 [WVGA]
Dot Pitch (H×V)
0.0642×0.1790 mm
Configuration
RGB Vertical Stripe
Pixel Pitch(H×V)
0.1926×0.1790 mm [134PPI]
Mechanical Size :
Display Area(H×V)
154.08×85.92 mm
Bezel Area(H×V)
157.08×89.39 mm
Outline Dim.(H×V)
164.9×100 mm
Outline Depth
5.7±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Fixation :
Without
Other Features :
Weight
160g (Typ.)
Surface
Antiglare
3. TIANMA P0700WVN1ME01 Optical Details
Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
20 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.312; Wy:0.320
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6620K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P0700WVN1ME01 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
5. TIANMA P0700WVN1ME01 Backlight Details
Back-light Features:
Lamp Shape
Array
Lamp Type
WLED
Life Time
20K(Min.) (Hours)
Replacement
-
Amount
3S6P
Position
Edge light type
Lamp Electrical :
Voltage Input
9/9.6/10.8V (Min./Typ./Max.)
Current Input
120/180mA (Typ./Max.)
Consumption
1.15W (Typ.)
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
No
6. TIANMA P0700WVN1ME01 Interface Details
Signal Systerm :
Parallel RGB (1 ch, 6/8-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/10.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Current Input
10/30/0.3/0.3mA (Max.)(ICC/AIDD/IGH/IGL)
Consumption
TBD
Interface Features :
Type
FPC
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
0.5 mm
50 pins
1 pcs
7. TIANMA P0700WVN1ME01 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
20
1
520×345×74
N/A
0.0133
Outer box
60
3
544×365×250
15.30
0.0496
