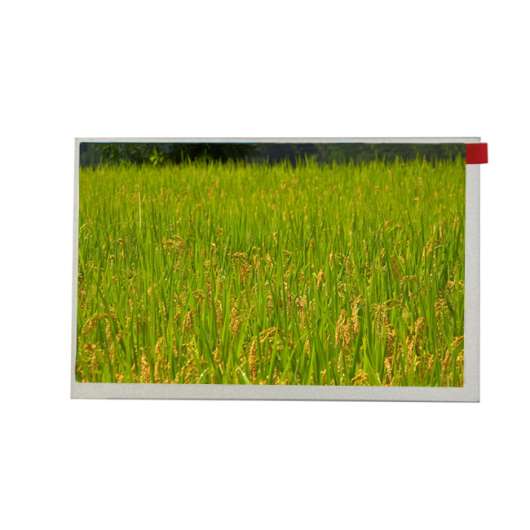

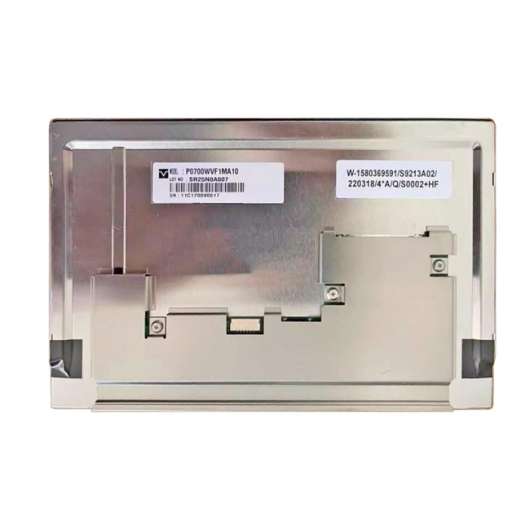

Explore Tianma s 7-inch industrial LCD, P0700WVF1MA10 1000 nits brightness, 1000:1 contrast, and robust -30~80°C operation ensure clarity in sunlight With LVDS interface and SFT wide viewing angle Perfect for demanding industrial and outdoor equipment Get technical data sheet!
| Model | P0700WVF1MA10 |
| Brand | TIANMA |
| Size | 7.0inch |
| Resolution | 800*480 |
| Brightness | 1000cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P0700WVF1MA10 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0700WVF1MA10
Diagonal Size
7.0"
Application
Industrial，Outdoor High Brightness
Panel Type
a-Si TFT-LCD , LCM
Model Alias
TM070RDGP05-00
Reliability :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-40 ~ 90 °C
RoHS State
RoHS
Vibration Rating
1.0G (9.8 m/s²)
Specific Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥70K hours，With LED Driver,180°Reverse，6/8bit，Matte
2.TIANMA P0700WVF1MA10 Mechanical Details
Pixel Features :
Pixel Format
800(RGB)×480 [WVGA]
Dot Pitch(H×V)
0.0635×0.1905 mm
Configuration
RGB Vertical Stripe
Pixel Pitch(H×V)
0.1905×0.1905 mm [133PPI]
Mechanical Size :
Display Area(H×V)
152.4×91.44 mm
Bezel Area(H×V)
155.4×94.94 mm
Outline Dim.(H×V)
169.8×109.7 mm
Outline Depth
7.3/9.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
183g (Typ.)
Surface
Antiglare
3.TIANMA P0700WVF1MA10 Optical Details
Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.309; Wy:0.315
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6854K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
72%
sRGB
96% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P0700WVF1MA10 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
5. TIANMA P0700WVF1MA10 Backlight Details
Back-light Features:
Lamp Shape
2 strings
Lamp Type
WLED
Life Time
70K(Typ.) (Hours)
Replacement
-
Amount
7S2P
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
FI-S6P-HFE
1.25 mm
6pins
1 pcs
BLE-6PINS-NNCAAC
Backlight Driver :
With LED Driver
Driver Electrical :
Input Current
308/462mA (Typ./Max.)
Input Voltage
12.0±1.0V
6. TIANMA P0700WVF1MA10 Interface Details
Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
101/152mA (Typ./Max.)
Consumption
330/495mW (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-SEB20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H
7. TIANMA P0700WVF1MA10 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
12
1
520×345×74
N/A
0.0133
Outer box
36
3
544×365×250
11.88
0.0496
