TIANMA TM150TDSG70 15" LCD Display Module – 1024×768 Resolution Industrial Panel

TIANMA TM150TDSG70 15-inch LCD module
TIANMA TM150TDSG70 15-inch LCD module
  • TIANMA TM150TDSG70 15-inch LCD module
  • TIANMA TM150TDSG70 15-inch LCD module

TIANMA TM150TDSG70 15" LCD Display Module – 1024×768 Resolution Industrial Panel

TIANMA TM150TDSG70 15-inch LCD module with 1024×768 resolution, LVDS, and temperature support -20 ~ 70 °C Ideal for industrial, medical, and kiosk displays Get specs datasheet now!

Model TM150TDSG70
Brand TIANMA
Size 15inch
Resolution 1024*768
Brightness 300 cd/m² (Typ.)
Perspective 80/80/80/80
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA 15 " LCD Display TM150TDSG70 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM150TDSG70
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size15”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level1.2G (11.76 m/s²)
Features :Lamp Repaceable，WLED Backlight,With LED Driver,180°;Reverse，6/8bit,Matte


2.TIANMA 15 " LCD Display TM150TDSG70 Optical Details

Basic Information :Luminance300  cd/m²(Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at-Response Speed8 (Typ.)(Tr+Td) ms
Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)


3.TIANMA 15 " LCD Display TM150TDSG70 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch0.099*0.297 (mm) (H*V)Pixel Pitch0.297*0.297 (mm) (H*V)  [85PPI]
Physical Size :Active Viewing(mm)304.128(H) *228.096(V)Bezel Area (mm)307.4(H) * 231.3(V)
Outline Dim. (mm)326.5(H) *253.5(V)Outline Depth11.8±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight1.00Kgs (Typ.)SurfaceAntiglare


4.TIANMA 15 " LCD Display TM150TDSG70 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)


5.TIANMA 15 " LCD Display TM150TDSG70 Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input500/550mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
P-TWO185083-201211.25mm20pins1 pcsLVDS-20P1C8B-080A


6.TIANMA 15 " LCD Display TM150TDSG70 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
 Replaceable		Lamp Shape-Lamp Life30K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail BrandModelPin PitchPinsAmountPin Assignment
STMMSB24038P51.25 mm5pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Input CurrentTBDInput Voltage12.0V (Typ.)


7.TIANMA 15 " LCD Display TM150TDSG70 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
14 pcs / box14.6 Kgs378*368*315.5 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Original TIANMA TM150TDSG52 15" LCD Panel - 1024×768 TFT Display TM150XDHG01 15.0" TFT LCD Display – 1600×1200 Resolution, LVDS 30-Pin, Wide Viewing Angle

Related Products

TM150XDHG01 15.0" TFT LCD Display...

TM150XDHG01 15.0" TFT LCD ...

Original TIANMA TM150TDSG80 15" L...

Original TIANMA TM150TDSG80...

New Original TIANMA TM150TDSG81 1...

New Original TIANMA TM150TD...

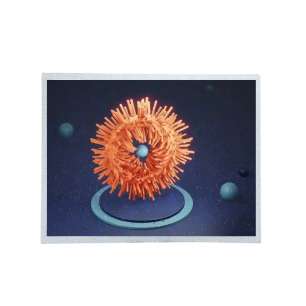

Original TIANMA TM150TDSG71 15" L...
