TIANMA TM150TDS50 15" XGA Screen LCD – 1024×768 TFT Module, Resistive/Capacitive

TIANMA TM150TDS50 15-inch XGA (1024×768) TFT LCD
TIANMA TM150TDS50 15-inch XGA (1024×768) TFT LCD
  • TIANMA TM150TDS50 15-inch XGA (1024×768) TFT LCD
  • TIANMA TM150TDS50 15-inch XGA (1024×768) TFT LCD

TIANMA TM150TDS50 15" XGA Screen LCD – 1024×768 TFT Module, Resistive/Capacitive

TIANMA TM150TDS50 15-inch XGA (1024×768) TFT LCD Can be equipped with touch screen(resistive capacitive) Ideal for industrial, medical & kiosk displays Request a quote datasheet!

Model TM150TDS50
Brand TIANMA
Size 15inch
Resolution 1024*768
Brightness 400cd/m2
Perspective 80/80/80/80
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA TM150TDS50 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM150TDS50
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size15”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，Life>=50K hours,With LED Driver,6/8bit,Matte


2.TIANMA TM150TDS50 Optical Details

Basic Information :Luminance400  cd/m²(Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed8 (Typ.)(Tr+Td) (ms)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio63%sRGB80% coverage
Adobe RGB62% coverageDCI-P365% coverage
Rec.202047% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA TM150TDS50 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch0.099*0.297 (mm) (H*V)Pixel Pitch0.297*0.297 (mm) (H*V)  [85PPI]
Physical Size :Active Viewing(mm)304.128(H) *228.096(V)Bezel Area (mm)307.4(H) *231.3(V)
Outline Dim. (mm)326.5(H) *253.5(V)Outline Depth11.8±0.3 mm
Outline Features :Form StyleFlat RectangleOutline ShapeNormal bezel
Aspect Ratio4:3 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight1.00Kgs (Typ.)Surface Antiglare


4.TIANMA TM150TDS50 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


5.TIANMA TM150TDS50 Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input500/550mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF14H-20S-1.25C1.25mm20pins1 pcsLVDS-20P1C8B-010K


6.TIANMA TM150TDS50 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type (Bottom side)
Exchange
-		Lamp Shape-Lamp Life50K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail BrandModelPin PitchPinsAmountPin Assignment
STMMSB24038P51.25 mm5pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Input Current480/650mA (Typ./Max.)Input Voltage12.0V (Typ.)


7.TIANMA TM150TDS50 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
10 pcs / box11.7±0.6 Kgs378*343*430 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*

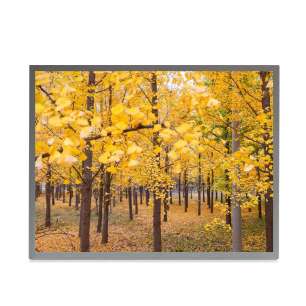

TIANMA TMS150XG1-10TB 15" XGA TFT LCD Panel – 1024×768 Display Module, Industrial Grade Original TIANMA TM150TDSG52 15" LCD Panel - 1024×768 TFT Display
