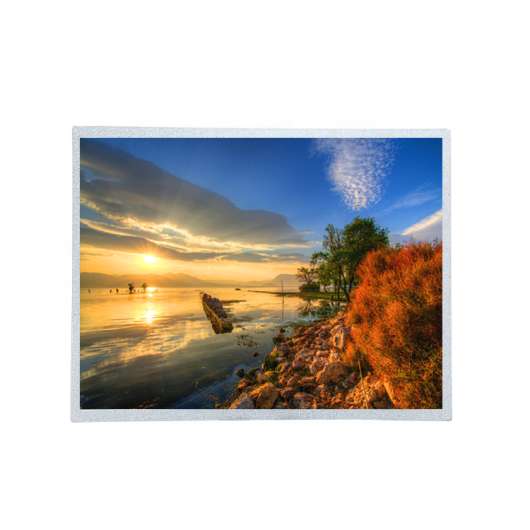

1.TIANMAP1500XGF2MB10Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP1500XGF2MB10Diagonal Size15.0"ApplicationIn...
| Model | P1500XGF2MB10 |
| Brand | TIANMA |
| Size | 15inch |
| Resolution | 1024*768 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P1500XGF2MB10 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1500XGF2MB10
Diagonal Size
15.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
Specific Features :
WLED Backlight,Life≥50K hours，With LED Driver,Matte
2. TIANMA P1500XGF2MB10 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768 [XGA]
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
307.4×231.3 mm (H×V)
Bezel Opening
326.5×253.5 mm (H×V)
Outline Depth(mm)
9.0 (Typ.)
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3(H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
875g (Typ.)
Surface
Antiglare
3. TIANMA P1500XGF2MB10 Optical Details
Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
X:0.306; Y:0.322
Color Numbers
16.7M (8-bit)
Color Temperature
6951K
Uniformity
-
1931 Color Gamut :
NTSC Ratio
63%
sRGB
89% coverage
Adobe RGB
66% coverage
DCI-P3
65% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1500XGF2MB10 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
5. TIANMA P1500XGF2MB10 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
8S6P
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
6 strings
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
molex
504050-1291
1.5 mm
12 pins
1 pcs
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
580/870mA (Typ./Max.)
Consumption
6.9/10.4W (Typ./Max.)
6. TIANMA P1500XGF2MB10 Interface Details
Signal Systerm :
Voltage Input
3.3V (Typ.)
Current Input
277/415.5mA (Typ./Max.)
Consumption
0.92/1.37W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB240420HE
1.25 mm
20 pins
1 pcs
7. TIANMA P1500XGF2MB10 Carton Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
12
1
544×348×285
3.58
0.0540
