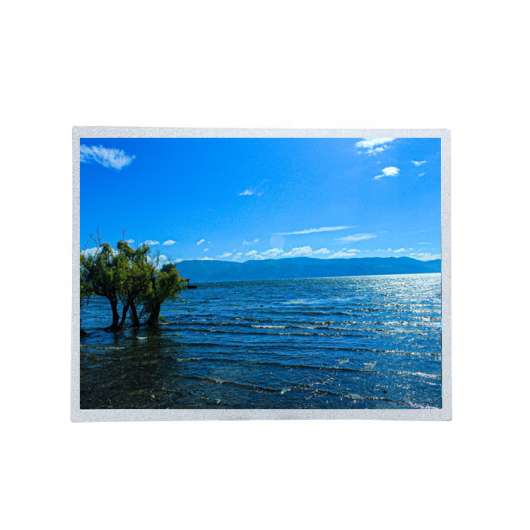

Tianma P1500XGF2MA00 is a 15 0-inch industrial TFT LCD display with XGA (1024×768) resolution, 500 cd m² brightness, and wide operating temperature range (-30~70°C) Features IPS technology wide viewing angles, LVDS interface, and robust metal frame construction Ideal for industrial HMI, medical equipment, and transportation applications Request free datasheet and competitive pricing
| Model | P1500XGF2MA00 |
| Brand | TIANMA |
| Size | 15.0inch |
| Resolution | 1024*768 |
| Brightness | 1500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P1500XGF2MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1500XGF2MA00
Diagonal Size
15.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
1.2G (11.76 m/s²)
Specific Features :
Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte
2. TIANMA P1500XGF2MA00 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768 [XGA]
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
307.4×231.3 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth(mm)
13.0±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3(H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
TBD
Surface
Antiglare
3. TIANMA P1500XGF2MA00 Optical Details
Basic Information :
Brightness
1500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
-
Uniformity
1.25/1.40 (Typ./Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P1500XGF2MA00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
TBD
5. TIANMA P1500XGF2MA00 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
7S6P
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
6 strings
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
molex
504050-1291
1.5 mm
12 pins
1 pcs
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
TBD
6. TIANMA P1500XGF2MA00 Interface Details
Signal Systerm :
Voltage Input
3.3V (Typ.)
Current Input
TBD
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB240420HE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-080A
7. TIANMA P1500XGF2MA00 Carton Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
438×402×464
312.10
0.0817
Pallet
120
12
N/A
N/A
N/A
