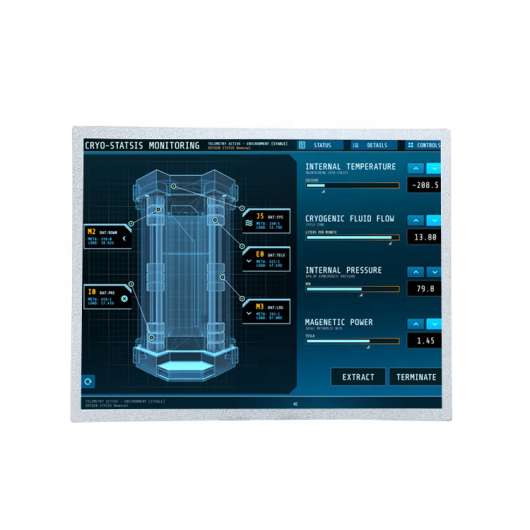

Tianma P1500XGF1MB00 is a 15 0-inch industrial TFT LCD display with XGA (1024×768) resolution, 300 nits brightness, and a wide operating temperature of -20~70°C It features an LVDS interface , robust construction, and is designed for reliability in industrial automation, HMI, and critical display applications Request a free datasheet and competitive quote
| Model | P1500XGF1MB00 |
| Brand | TIANMA |
| Size | 15inch |
| Resolution | 1024*768 |
| Brightness | 350cd/m2 |
| Perspective | 88/88/88/88 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma 15.0-inch P1500XGF1MB00 Industrial LCD | 1024×768 XGA | LVDS Interface & Wide Temp is supplied for industrial HMI, automation, medical, transportation and embedded display projects. Samples, replacement evaluation and volume procurement are supported.
Stock: Sufficient MOQ: 1 piece. Request the latest real-time price and lead time for your quantity.
Confirm the complete suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, cable and controller customization can be evaluated.
Request Latest Price and Datasheet
Send both model numbers and project requirements for interface, timing, connector and mechanical comparison.
1. TIANMA P1500XGF1MB00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1500XGF1MB00
Diagonal Size
15.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
Specific Features :
WLED Backlight,Life≥50K hours，With LED Driver
2. TIANMA P1500XGF1MB00 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768 [XGA]
Dot Pitch
-
Configuration
RGB Vertical Stripe
Pixel Pitch
- [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
-
Outline Depth(mm)
9.5/12.3 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3(H:V)
Shape Style
3. TIANMA P1500XGF1MB00 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
-
Color Performance :
Chromaticity
-
Color Numbers
16.7M (8-bit)
4. TIANMA P1500XGF1MB00 Electronics Details
Frame Frequency :
60Hz
5. TIANMA P1500XGF1MB00 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Backlight Driver :
With LED Driver
6. TIANMA P1500XGF1MB00 Interface Details
Signal Systerm :
Voltage Input
-
Current Input
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
