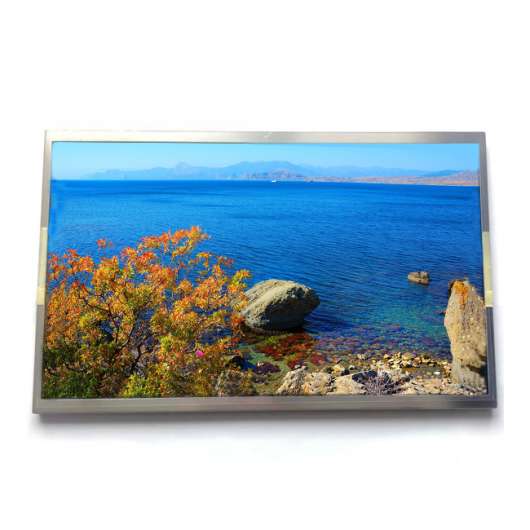

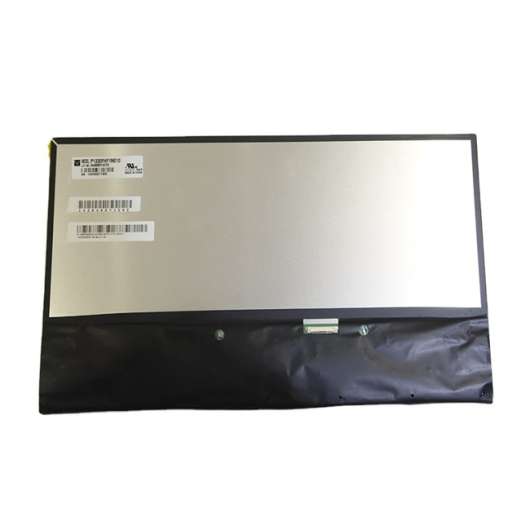

Tianma P1330FHF1ME10 is a 13 3-inch industrial TFT-LCD display with FHD (1920×1080) resolution, eDP interface, and a wide operating temperature range of -20~70°C It features 1000:1 contrast ratio, wide viewing angles, and robust construction for demanding applications in medical devices, industrial HMI, and indoor industrial equipment Request a free datasheet and quotation
| Model | P1330FHF1ME10 |
| Brand | TIANMA |
| Size | 13.3inch |
| Resolution | 1920*1080 |
| Brightness | 350cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | eDP |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma 13.3-inch P1330FHF1ME10 Industrial LCD | 1920×1080 FHD | eDP Interface & Wide Temp is a industrial LCD display for industrial HMI, automation, medical equipment, transportation and embedded systems. IDT Display supports samples, replacement evaluation and volume procurement.
Stock: Sufficient MOQ: 1 piece. Price changes with quantity and exchange rate; request the latest real-time quotation and lead time.
Confirm the complete suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Latest Price and Datasheet
Sufficient stock is available and MOQ is 1 piece. Final price and lead time are reconfirmed for the required quantity.
Yes. Send the original model and application requirements for engineering review.
1. TIANMA P1330FHF1ME10 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1330FHF1ME10
Diagonal Size
13.3"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
TM133VDGP01-00
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight,With LED Driver，Matte
2. TIANMA P1330FHF1ME10 Mechanical Details
Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch(W×H)
0.051×0.153 mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.153×0.153 mm [166PPI]
Mechanical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
305.35(W)×178.56(H) mm
Bezel Area
-
Outline Depth
3.7/8.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Fixation :
Without
Other Features :
Weight
346±17g
Surface
Antiglare
3. TIANMA P1330FHF1ME10 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.293; Wy:0.303
Color Numbers
16.7M (8-bit)
Color Temperature
8216K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
69%
sRGB
90% coverage
Adobe RGB
70% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1330FHF1ME10 Electronics Details
Reverse Scan :
No
5. TIANMA P1330FHF1ME10 Backlight Details
Back-light Features:
Lamp Shape
8 strings
Amount
8S8P
Life Time
30K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Current
432mA (Typ.)
Input Voltage
12.0±0.5V
Consumption
5.18W (Typ.)
6. TIANMA P1330FHF1ME10 Interface Details
Signal Systerm :
Input Current
-
Input Voltage
3.3V (Typ.)
Consumption
2.2/2.5W (Typ./Max.)
Signal Interface
eDP (2 Lanes), eDP1.2
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-76
0.5 mm
30 pins
1 pcs
7. TIANMA P1330FHF1ME10 Packing Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
447×415×328
5.30
0.0608
Pallet
120
12
N/A
N/A
N/A
