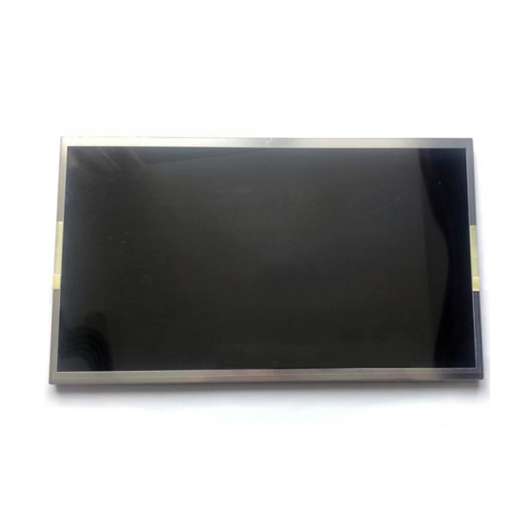

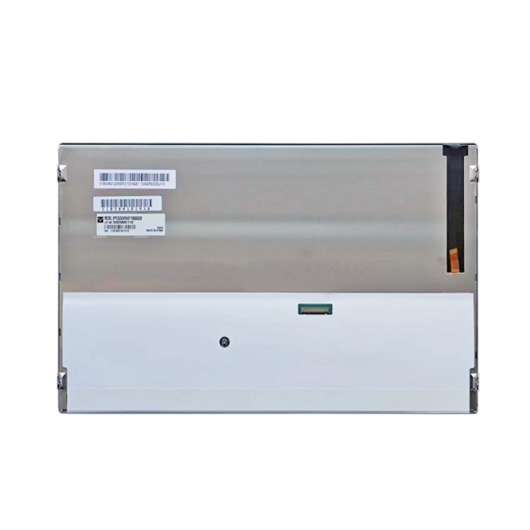

1.TIANMAP1330FHF1MA00 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP1330FHF1MA00Diagonal Size13.3"Application...
| Model | P1330FHF1MA00 |
| Brand | TIANMA |
| Size | 13.3inch |
| Resolution | 1920*1080 |
| Brightness | 1000cd/m2 |
| Perspective | 88/88/88/88 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P1330FHF1MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1330FHF1MA00
Diagonal Size
13.3"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
TM133VDGP02-00
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features
Ultra Hight Brightness,WLED Backlight,Life≥50K hours
2. TIANMA P1330FHF1MA00 Mechanical Details
Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch(W×H)
0.051×0.153 mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.153×0.153 mm [166PPI]
Mechanical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
308(W)×186(H) mm
Bezel Area
297.16(W)×168.64(H) mm
Outline Depth
7.23/10.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
561g (Typ.)
Surface
Hard coating
3. TIANMA P1330FHF1MA00 Optical Details
Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.306; Wy:0.325
Color Numbers
16.7M (8-bit)
Color Temperature
6915K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
75%
sRGB
95% coverage
Adobe RGB
76% coverage
DCI-P3
78% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P1330FHF1MA00 Electronics Details
Frame Frequency :
60Hz
5. TIANMA P1330FHF1MA00 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Lamp Electrical :
Input Voltage
20.3V (Typ.)
Input Current
640mA (Typ.)
Consumption
1.30W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
FH34SRJ-10S-0.5SH(50)
0.5mm
10pins
1pcs
BLE-10PINS-AAAANNCCCC
Backlight Driver :
No
6. TIANMA P1330FHF1MA00 Interface Details
Signal Systerm :
Input Current
-
Input Voltage
3.3V (Typ.)
Consumption
2.2W (Typ.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF81-40S-0.4H(51)
0.4 mm
40 pins
1 pcs
7. TIANMA P1330FHF1MA00 Packing Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
360×335×253
7.38
0.0305
