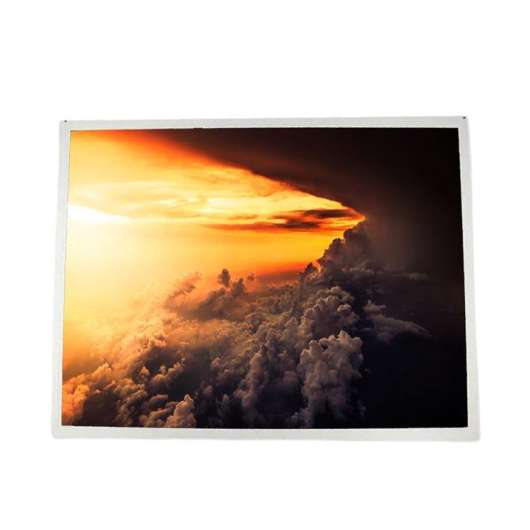

Tianma P1330FHF1MB10 is a 13 3-inch industrial TFT LCD display with Full HD 1920×1080 resolution, high brightness up to 1000 nits, and operating temperature range (-20~70°C) Featuring IPS technology for wide viewing angles, LVDS interface, and robust metal frame construction Ideal for industrial HMI, medical equipment, and outdoor applications Request datasheet and pricing
| Model | P1330FHF1MB10 |
| Brand | TIANMA |
| Size | 13.3inch |
| Resolution | 1920*1080 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P1330FHF1MB10 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1330FHF1MB10
Diagonal Size
13.3"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
Hight Brightness,WLED Backlight,Life≥50K hours，With LED Driver，Matte
2. TIANMA P1330FHF1MB10 Mechanical Details
Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch(W×H)
0.051×0.153 mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.153×0.153 mm [166PPI]
Mechanical Size :
Active Viewing
293.76(W)×165.24(H) mm
Bezel Area
297.16×168.64 mm (H×V)
Outline Dim.
308×186 mm (H×V)
Outline Depth
7.23/10.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
TBD
Surface
Antiglare
3. TIANMA P1330FHF1MB10 Optical Details
Basic Information :
Brightness
600 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.293; Wy:0.303
Color Numbers
16.7M (8-bit)
Color Temperature
8216K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
69%
sRGB
90% coverage
Adobe RGB
70% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P1330FHF1MB10 Electronics Details
Reverse Scan :
No
5. TIANMA P1330FHF1MB10 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
7S8P
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
8 strings
Position
Edge light type
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19L-14P-1H(52)
1.0 mm
14pins
1pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Input Current
-
Input Voltage
12.0±0.5V
Consumption
8.12W (Typ.)
6. TIANMA P1330FHF1MB10 Interface Details
Signal Systerm :
Input Current
-
Input Voltage
3.3V (Typ.)
Consumption
2.2W (Typ.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
MDF76KBW-30S-1H(56)
1.0mm
30 pins
1 pcs
7. TIANMA P1330FHF1MB10 Packing Details
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
360×335×253
7.38
0.0305
