TM121SDSG07 12.1" SVGA LCD Replacement | 800×600 Industrial Display

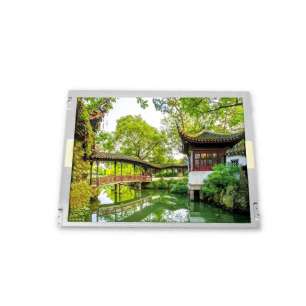

Tianma TM121SDSG07 12.1-inch TFT LCD screen
Tianma TM121SDSG07 12.1-inch TFT LCD screen
  • Tianma TM121SDSG07 12.1-inch TFT LCD screen
  • Tianma TM121SDSG07 12.1-inch TFT LCD screen

TM121SDSG07 12.1" SVGA LCD Replacement | 800×600 Industrial Display

Tianma TM121SDSG07 12 1-inch TFT LCD screen offers 800×600 SVGA resolution as a drop-in replacement for industrial equipment With 350nits brightness and LVDS interface, compatible with CNC machines, POS systems, and legacy HMI devices Supports -20°C~70°C operation Contact for bulk OEM quotes or compatibility verification

Model TM121SDSG07
Brand TIANMA
Size 12.1inch
Resolution 800*600
Brightness 350cd/m²
Perspective 80/80/65/75 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA TM121SDSG07 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM121SDSG07
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size12.1”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight, With LED Driver, 6/8bit


2.TIANMA TM121SDSG07 Optical Details

Basic Information :Luminance350 cd/m² (Typ.)Contrast Ratio700:1 (Typ.) (Transmissive)
Good View at-Response Speed35 (Typ.)(Tr+Td) ms
Viewing Angle80/80/65/75 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :Chromaticity-Display Colors262K/16.7M (6-bit / 8-bit)

Color Temperature		-White Variation1.25/1.33 (Typ./Max.)(9 points)


3.TIANMA TM121SDSG07 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.1025*0.3075 mmPixel Pitch (W*H)0.3075*0.3075 mm  [82PPI]
Physical Size :Active Viewing(mm)246(W)*184.5(H) mmBezel Area (mm)-
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type


4.TIANMA TM121SDSG07 Electronics Details

Refresh Rate :60Hz


5.TIANMA TM121SDSG07  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input270/325mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STMMSB240420HE1.25mm20pins1 pcs


6.TIANMA TM121SDSG07 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life30K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail BrandModelPin PitchPinsAmountPin Assignment
STMMSB24038P51.25 mm5 pins1 pcs
Backlight Driver :
 		Input Voltage12.0V (Typ.)Input CurrentTBD

Backlight Driver :With LED Driver


7.TIANMA TM121SDSG07 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
15 pcs / box10.0±0.5 Kgs530*430*274 mm
