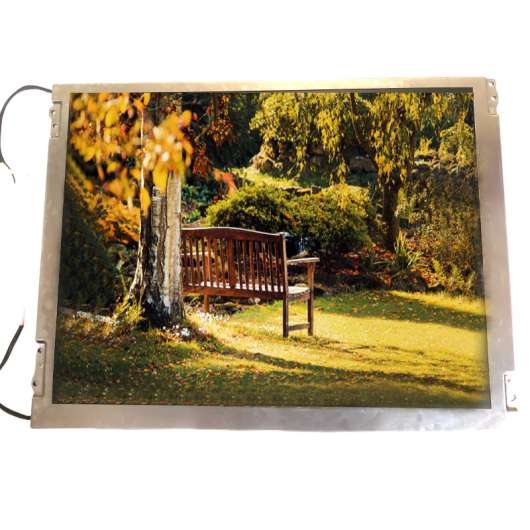

Original TIANMA TM121SCS01 12.1" Industrial LCD - 800×600 LVDS Display

Original TIANMA TM121SCS01 12.1` Industrial LCD Panel
Original TIANMA TM121SCS01 12.1` Industrial LCD Panel
  • Original TIANMA TM121SCS01 12.1` Industrial LCD Panel
  • Original TIANMA TM121SCS01 12.1` Industrial LCD Panel

Original TIANMA TM121SCS01 12.1" Industrial LCD - 800×600 LVDS Display

Original TIANMA TM121SCS01 12 1" Industrial LCD Panel - 800×600 resolution, 2 CCFL backlight, LVDS interface Rugged design for harsh environments, Current production status: discontinued.

Model TM121SCS01
Brand TIANMA
Size 12.1inch
Resolution 800×600
Brightness 400cd/m2
Perspective 70/70/50/60 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA TM121SCS01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM121SCS01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size12.1”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :Life>=50K hours, 6/8bit，Matte


2.TIANMA TM121SCS01 Optical Details

Basic Information :Luminance400 cd/m²(Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/25 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio57%sRGB79% coverage
Adobe RGB60% coverageDCI-P359% coverage
Rec.202043% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA TM121SCS01 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600 [SVGA]ArrangementRGB Vertical Stripe
Dot Pitch 0.1025*0.3075 mm (H*V)Pixel Pitch (W*H)0.3075*0.3075 mm   [82PPI]
Physical Size :Active Viewing(mm)246*184.5 mm (H*V)Bezel Area (mm)249.0*188.3 mm (H*V)
Outline Dim.(mm)279*209 mm (H*V)Depth(mm)11.0 (Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (H:V)OrientationLandscape type
Holes & Brackets :Face mounting holes (7 pcs) on left, right bezel
Other Spec :Weight425gSurfaceAntiglare


4.TIANMA TM121SCS01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Power Consumption :6.8W (Typ.)


5.TIANMA TM121SCS01  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input270/325mA (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STMMSB240420HE1.25mm20pins1 pcsLVDS-20P1C8B-080B


6.TIANMA TM121SCS01  Backlight Details

Lamp Features :Lamp TypeCCFLQuantity2 pcsPositionEdge light type (Top and Bottom)
Exchange
-		Lamp ShapeStraightLamp Life50K(Min.) (Hours)
Lamp Electrical :Voltage Input
 		770V (Typ.)Current Input6.0mA (Typ.)
Frequency40/55/60KHz (Min./Typ./Max.)Kick-off Voltage930/1120V (Max.)(Ta=+25/0℃)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JSTBHSR-02VS-13.5mm2pins2pcsBLL-2PINS-HL
Backlight Driver :No


7.TIANMA TM121SCS01 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
20 pcs / box13.1 Kgs577*421*326 mm
