Original 12.1" TIANMA TM121JDGP30 LCD Display Panel – 1280×800 Display Module

12.1inch TIANMA TM121JDGP30 WLED LCD Screen
12.1inch TIANMA TM121JDGP30 WLED LCD Screen
  • 12.1inch TIANMA TM121JDGP30 WLED LCD Screen
  • 12.1inch TIANMA TM121JDGP30 WLED LCD Screen

Original 12.1" TIANMA TM121JDGP30 LCD Display Panel – 1280×800 Display Module

Original 12 1" TIANMA TM121JDGP30 WLED LCD Screen – 1280×800 HD Display Module 450 cd m² brightness, 170 wide view,low power consumption Trusted supplier Get a quote today!

Model TM121JDGP30
Brand TIANMA
Size 12.1inch
Resolution 1280*800
Brightness 450 cd/m²
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 12.1" LCD Display TM121JDGP30 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM121JDGP30
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size12.1”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight,Life>=50K hours, With LED Driver,6/8bit，Matte


2.TIANMA 12.1" LCD Display TM121JDGP30 Optical Details

Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed-
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeSFT, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.300; Wy:0.320Display Colors262K/16.7M (6-bit / 8-bit)

Color Temperature		7351KWhite Variation-


3.TIANMA 12.1" LCD Display TM121JDGP30 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.068*0.204 mmPixel Pitch (W*H) 0.3075*0.3075 mm (H*V)  [82PPI]
Physical Size :Active Viewing(mm)261.1(W)*163.2(H) mmBezel Area (mm)264.12(W)*166.2(H) mm
Outline Dim.(mm)278(W)*184(H) mmDepth(mm)8.2 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Spec :WeightTBDSurfaceAntiglare


4.TIANMA 12.1" LCD Display TM121JDGP30 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Power Consumption :COG Suggest EK79202


5.TIANMA 12.1" LCD Display TM121JDGP30  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STARCONN093G30-B0001A-G41.0mm30pins1 pcs


6.TIANMA 12.1" LCD Display TM121JDGP30 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity8S3PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life50K(Min.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Interface Detail :Input Voltage12±3VInput CurrentTBD
ConsumptionTBD
Backlight Driver :With LED Driver


7.TIANMA 12.1" LCD Display TM121JDGP30 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
15 pcs / box-530*430*274 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Original TIANMA TM121SCS01 12.1" Industrial LCD - 800×600 LVDS Display Original 12.1" TIANMA TM121JDSG10 LCD Display Panel 1280×800 Display Module

Related Products

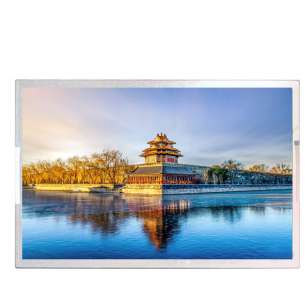

Original 12.1" TIANMA TM121JDSG10...

Original 12.1" TIANMA TM121...

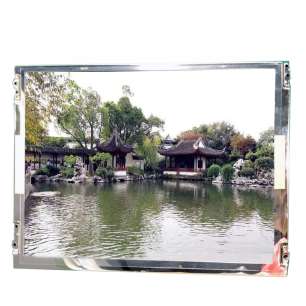

Original TIANMA TM121SDSG05 12.1"...

Original TIANMA TM121SDSG05...

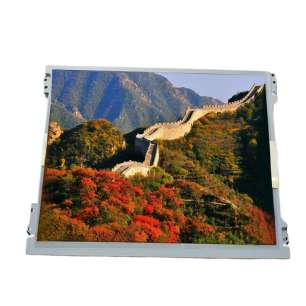

TM121SDSG07 12.1inch SVGA LCD D...

TM121SDSG07 12.1inch SVGA L...

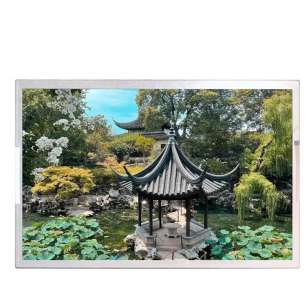

TM121TDSG02 12.1inch XGA Industria...
