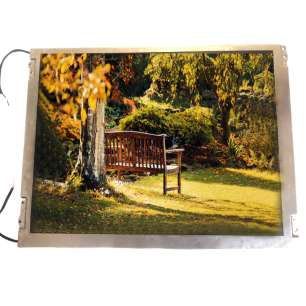

Original 12.1" TIANMA TM121JDSG10 LCD Display Panel 1280×800 Display Module

Original 12 1 " TIANMA TM121JDSG10 LCD Screen – 1280×800 HD Display Module High-quality replacement panel with reliable performance Global shipping Request a quote today!

Model	TM121JDSG10
Brand	TIANMA
Size	12.1inch
Resolution	1280*800
Brightness	450 cd/m² (Typ.)
Perspective	85/85/85/85
Interface	LVDS
Operating Temp	-30 ~ 80 °C
Production State	Discontinued

Click For Price

1.TIANMA 12.1" LCD Display TM121JDSG10 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM121JDSG10
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	12.1”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 80 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	Wide Temperature,WLED Backlight,Life>=50K hours, With LED Driver,Matte

2.TIANMA 12.1" LCD Display TM121JDSG10 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	12/13 (Typ.)(Tr/Td)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.316; Wy:0.350	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6200K	White Variation	1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	39%	sRGB	55% coverage
	Adobe RGB	41% coverage	DCI-P3	41% coverage
	Rec.2020	29% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.TIANMA 12.1" LCD Display TM121JDSG10 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*800, WXGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.068*0.204 mm	Pixel Pitch (W*H)	0.204*0.204mm [124PPI]
Physical Size :	Active Viewing(mm)	261.1(W)*163.2(H) mm	Bezel Area (mm)	262.12(H) *164.2(V)
Physical Size :	Outline Dim.(mm)	278(W)*184(H) mm	Depth(mm)	9.9/10.4 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	440g (Typ.)	Surface	Antiglare

4.TIANMA 12.1" LCD Display TM121JDSG10 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	COG Built-in RM91M39, RM76M59

5.TIANMA 12.1" LCD Display TM121JDSG10 Interface Details

Signal Systerm :		LVDS (1 ch, 8-bit)				Logic Voltage		-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input	660mA (Typ.)
	Consumption			2.18W (Typ.)
Interface Features :	Position			-			Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch		Pins	Amount	Pin Assignment
	STARCONN		093G30-B0001A-G4		1.0mm		30pins	1 pcs

6.TIANMA 12.1" LCD Display TM121JDSG10 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position		Edge light type
	Exchange	-		Lamp Shape		-	Lamp Life		50K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Interface Detail :	Input Voltage		10/12/15V (Min./Typ./Max.)		Input Current			660mA (Typ.)
	Consumption		7.20W (Typ.)
Backlight Driver :	With LED Driver

7.TIANMA 12.1" LCD Display TM121JDSG10 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	15 pcs / box	10.0±0.5 Kgs	530430274 mm
