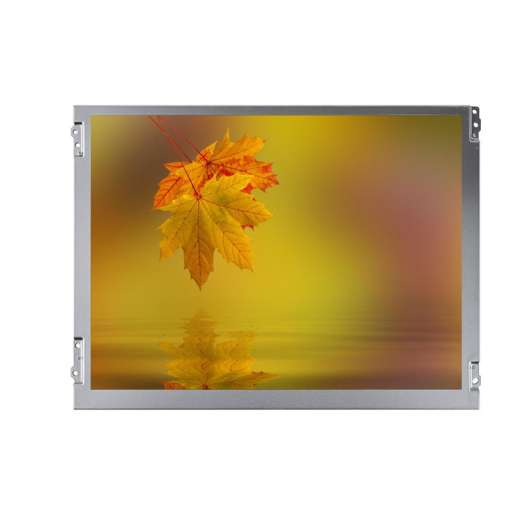

1.TIANMAP1210XGN1MB00Application DetailsBasic Information :BrandTIANMAModelP1210XGN1MB00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210XGN1MB00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1024*768 |
| Brightness | 450cd/m2 |
| Perspective | 80/80/80/80 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210XGN1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210XGN1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
12.1 inch
Alias
Environment :
Storage Temp.
-30 ~ 80°C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
1.2G (11.76 m/s²)
Typical Features :
Lamp Repaceable，WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit，Matte
2.TIANMA P1210XGN1MB00 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(W×H)
0.080×0.240 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.240×0.240 mm [105PPI]
Mechanical Size :
Active Viewing(W×H)
245.76×184.32 mm
Bezel Area
250.8×189.4 mm (H×V)
Outline Dim.
279×209 mm (H×V)
Depth(mm)
6.0/9.1 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Fixation :
Face mounting holes (6-Φ3.4, 1-R1.7) on left, right bezel
Other Spec :
Weight
485g (Typ.)
Surface
Antiglare
3.TIANMA P1210XGN1MB00 Optical Details
Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80(Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
3/5 (Typ.)(Tr/Td) (ms)
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
55%
sRGB
77% coverage
Adobe RGB
58% coverage
DCI-P3
58% coverage
Rec.2020
41% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1210XGN1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
6.4W (Typ.)
5.TIANMA P1210XGN1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
340/740mA (Typ./Max.)
Consumption
-
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSB240420HE
1.25mm
20 pins
1 pcs
LVDS-20P1C8B-080G
6.TIANMA P1210XGN1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
9S2P
Position
Edge light type
Replacement
Replaceable
Shape
2 strings
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Connector
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
STM
MSB24038P5
1 pcs
1.25 mm
5 pins
Backlight Driver :
Backlight Driver :
Driver Electrical :
Input Currentt
410/480mA (Typ./Max.)
Input Voltage
12.0±1.2V
7.TIANMA P1210XGN1MB00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
395×311×377
5.69
0.0463
Pallet
160
16
N/A
N/A
N/A
