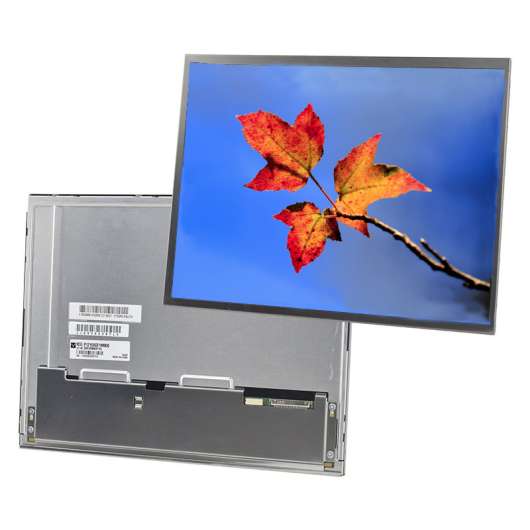

1.TIANMAP1210XGF1MB00Application DetailsBasic Information :BrandTIANMAModelP1210XGF1MB00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210XGF1MB00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1024*768 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210XGF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210XGF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
12.1 inch
Alias
TM121TDGP03-00
Environment :
Storage Temp.
-40 ~ 90°C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit
2.TIANMA P1210XGF1MB00 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(W×H)
0.080×0.240 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.240×0.240 mm [105PPI]
Mechanical Size :
Active Viewing(W×H)
245.76×184.32 mm
Overall Dim.
260.5(W)×203(H) mm
Bezel Opening
249(W)×187.5(H) mm
Depth(mm)
8.3/10.0 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Fixation :
Side mounting holes (5-M2) on left, right bezel
Other Spec :
Weight
550g (Typ.)
Surface
Hard coating
3.TIANMA P1210XGF1MB00 Optical Details
Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.303; Wy:0.337
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6946K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
97% coverage
Adobe RGB
77% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1210XGF1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1210XGF1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
135/202mA (Typ./Max.)
Consumption
-
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HFE
1.25mm
20 pins
1 pcs
LVDS-20P1C8B-170A
6.TIANMA P1210XGF1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Connector
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
JST
SM10B-SHLS-TF
1 pcs
1.0 mm
10 pins
Backlight Driver :
Backlight Driver :
Driver Electrical :
Input Currentt
490/612mA (Typ./Max.)
Input Voltage
12.0±0.8V
7.TIANMA P1210XGF1MB00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
433×395×310
6.92
0.0530
