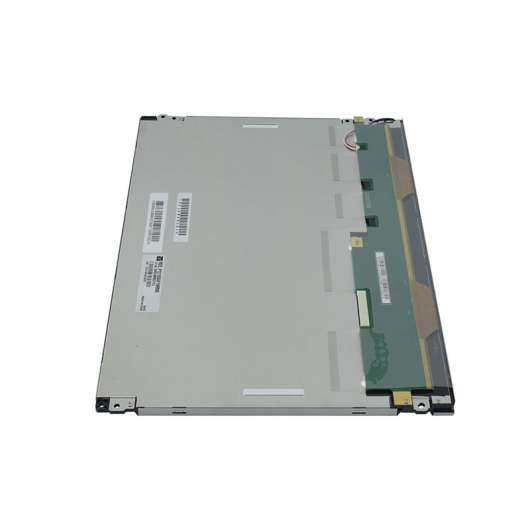

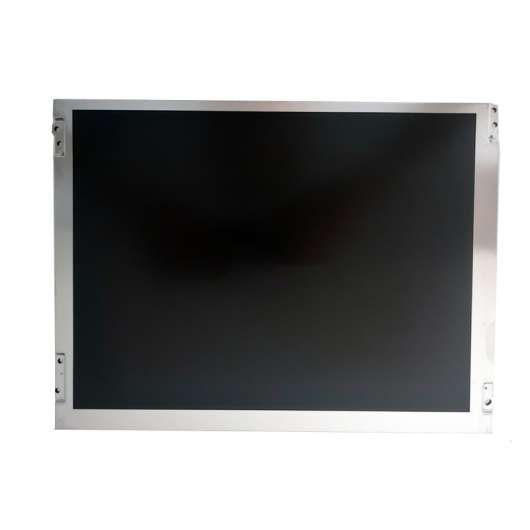

Tianma P1210SVF1MB00 is a 12 1-inch industrial TFT-LCD with 800×600 resolution, 500 cd m² brightness, and temperature of -20~70°C wide viewing angles (88 88 88 88) , WLED side-light backlight with 50K hours lifespan , and robust LVDS interface (20-pin) Ideal for Industrial HMI, medical devices, and outdoor equipment Request a free datasheet and quote
| Model | P1210SVF1MB00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 800*600 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma 12.1-inch P1210SVF1MB00 Industrial LCD | 800×600 SVGA | 500 nits & Wide Temp is supplied for industrial HMI, automation, medical, transportation and embedded display projects. Samples, replacement evaluation and volume procurement are supported.
Stock: Sufficient MOQ: 1 piece. Request the latest real-time price and lead time for your quantity.
Confirm the complete suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, cable and controller customization can be evaluated.
Request Latest Price and Datasheet
Send both model numbers and project requirements for interface, timing, connector and mechanical comparison.
1.TIANMA P1210SVF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210SVF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
12.1 inch
Alias
Environment :
Storage Temp.
-30 ~ 80°C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
sRGB,WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit，Matte
2.TIANMA P1210SVF1MB00 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch
0.1025×0.3075 mm (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch
0.3075×0.3075 mm (H×V) [82PPI]
Mechanical Size :
Active Viewing
246×184.5 mm (H×V)
Bezel Area
249.05×188.3 mm (H×V)
Outline Dim.
279×209 mm (H×V)
Depth(mm)
6.27/9.0 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Fixation :
Face mounting holes (6-Φ3.4, 1-R1.7) on left, right bezel
Other Spec :
Weight
492g (Typ.)
Surface
Antiglare
3.TIANMA P1210SVF1MB00 Optical Details
Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.302; Wy:0.331
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
7073K
Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
73%
sRGB
98% coverage
Adobe RGB
76% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1210SVF1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1210SVF1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
345/450mA (Typ./Max.)
Consumption
1.14/1.49W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSB240420HE
1.25mm
20 pins
1 pcs
LVDS-20P1C8B-080G
6.TIANMA P1210SVF1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
8S4P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Connector
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
STM
MSB24038P5
1 pcs
1.25 mm
5 pins
Lamp Driver
With LED Driver
Driver Electrical :
Input Currentt
0.72/1.0A (Typ./Max.)
Input Voltage
12.0±1.2V
Consumption
8.64/12W (Typ./Max.)
