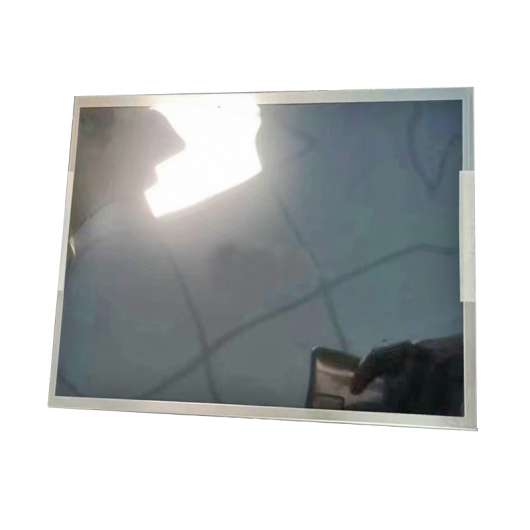

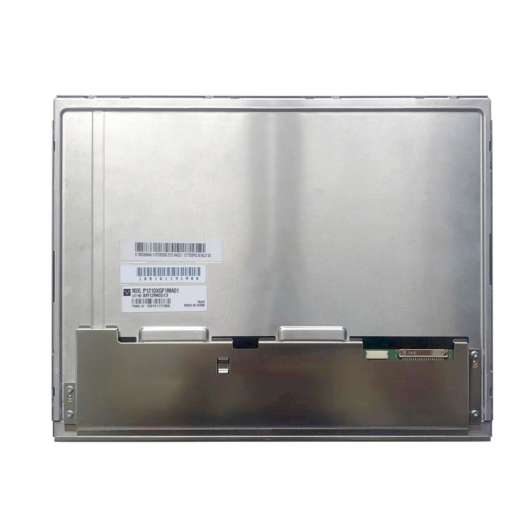

1.TIANMAP1210XGF1MA01Application DetailsBasic Information :BrandTIANMAModelP1210XGF1MA01Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210XGF1MA01 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1024*768 |
| Brightness | 800cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210XGF1MA01 Application Details
Basic Information :
Brand
TIANMA
Model
P1210XGF1MA01
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness
Screen Size
12.1 inch
Alias
TM121TDGP02-00
Environment :
Storage Temp.
-40 ~ 90°C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥70K hours，With LED Driver,180°Reverse，6/8bit， Matte
2.TIANMA P1210XGF1MA01 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(W×H)
0.080×0.240 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.240×0.240 mm [105PPI]
Mechanical Size :
Active Viewing(W×H)
245.76×184.32 mm
Bezel Area (W×H)
249×187.5 mm
Outline Dimension (W×H)
260.5×203 mm
Depth(mm)
8.8/10.0 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Fixation :
Side mounting holes (5-M2) on left, right bezel
Other Spec :
Weight
550g (Typ.)
Surface
Antiglare
3.TIANMA P1210XGF1MA01 Optical Details
Basic Information :
Brightness
800 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.305; Wy:0.339
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6818K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
97% coverage
Adobe RGB
77% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P1210XGF1MA01 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
6.26W (Typ.)
5.TIANMA P1210XGF1MA01 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
1500/300mA (Typ./Max.)
Consumption
1500/300mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HFE
1.25mm
20 pins
1 pcs
LVDS-20P1C8B-010H
6.TIANMA P1210XGF1MA01 Backlight Details
Backlight Features :
Type
WLED
Amount
8S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
70K(Typ.) Hours
Interface Features :
Position
Type
Lamp Driver
-
Connector
With LED Driver
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
JST
SM10B-SHLS-TF
1 pcs
1.0 mm
10 pins
Driver Electrical :
Voltage Input
12.0±0.8V
Current Input
480/650mA (Typ./Max.)
Consumption
5.76/7.8W (Typ./Max.)
7.TIANMA P1210XGF1MA01 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
433×395×310
6.92
0.0530
