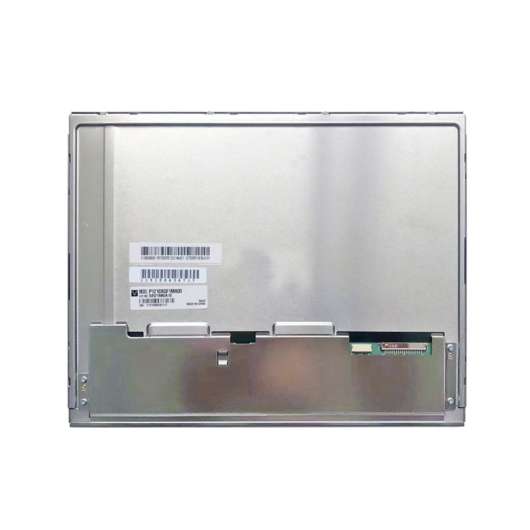

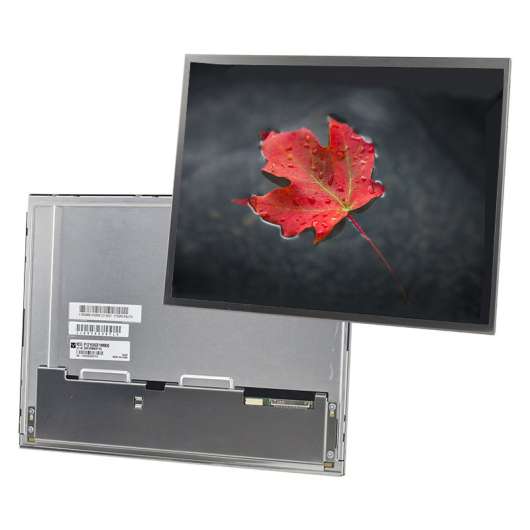

1.TIANMAP1210XGF1MA00Application DetailsBasic Information :BrandTIANMAModelP1210XGF1MA00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210XGF1MA00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1024*768 |
| Brightness | 1300cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210XGF1MA00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210XGF1MA00
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness，Automotive Display
Screen Size
12.1 inch
Alias
TM121TDGP01-00
Environment :
Storage Temp.
-40 ~ 90°C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
Srgb ，Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥100K hours，180°Reverse，6/8bit， Matte
2.TIANMA P1210XGF1MA00 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(W×H)
0.080×0.240 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.240×0.240 mm [105PPI]
Mechanical Size :
Active Viewing(W×H)
245.76×184.32 mm
Bezel Area (W×H)
249×187.5 mm
Outline Dimension (W×H)
260.5×203 mm
Depth(mm)
8.3/10.0 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Fixation :
Side mounting holes (5-M2) on left, right bezel
Other Spec :
Weight
550g (Typ.)
Surface
Antiglare
3.TIANMA P1210XGF1MA00 Optical Details
Basic Information :
Luminance(cd/m²)
Operating Mode
Contrast Ratio
1300 cd/m² (Typ.)
SFT, Normally Black, Transmissive
1000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D)
Viewing Direction
Response Speed
88/88/88/88 (Typ.)(CR≥10)
Symmetry
25 (Typ.)(Tr+Td) (ms)
Dispaly Color :
Chromaticity
Color Amount
White color Chromaticity
6816K
262K/16.7M (6-bit / 8-bit)
X:0.306; Y:0.334
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
74%
99%
77%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
77%
55%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.25/1.33 (Typ./Max.)(9 points)
Performance :
3D Type
Outdoor Visibility
Reflectance
-
Sunlight Readable
-
4. TIANMA P1210XGF1MA00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1210XGF1MA00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
240/270mA (Typ./Max.)
Consumption
0.8W (Typ.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HFE
1.25mm
20 pins
1 pcs
LVDS-20P1C8B-010H
6.TIANMA P1210XGF1MA00 Backlight Details
Backlight Features :
Type
WLED
Amount
7S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
100K(Typ.) Hours
WLED Electrical :
Current Input
Interface Features :
Position
Type
WLED Driver
-
Connector
No
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
JST
SM10B-SHLS-TF
1 pcs
1.0 mm
10 pins
BLE-10PINS-NNCAACCAAC
7.TIANMA P1210XGF1MA00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
10
1
433×395×310
6.99
0.0530
