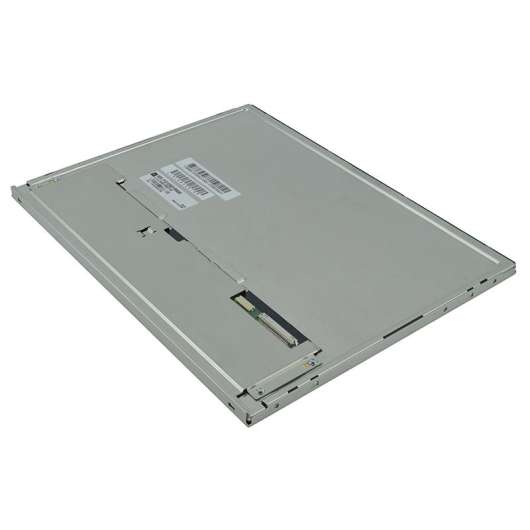

1.TIANMAP1210WXF2MA01Application DetailsBasic Information :BrandTIANMAModelP1210WXF2MA01Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210WXF2MA01 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1280*800 |
| Brightness | 1100cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210WXF2MA01 Application Details
Basic Information :
Brand
TIANMA
Model
P1210WXF2MA01
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness
Screen Size
12.1 inch
Alias
-
Environment :
Storage Temp.
-40 ~ 90°C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
Typical Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，Reverse I/F
2.TIANMA P1210WXF2MA01 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800 [WXGA]
Dot Pitch(W×H)
0.068×0.204 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.204×0.204 mm [124PPI]
Mechanical Size :
Active Viewing
261.12(W)×163.2(H) mm
Overall Dim.
-
Bezel Opening
-
Depth(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Other Spec :
Weight
TBD
Surface
Hard coating
3.TIANMA P1210WXF2MA01 Optical Details
Basic Information :
Luminance(cd/m²)
1100 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
20 (Typ.)(Tr+Td)
Color Performance :
Chromaticity
Support Color
16.2M (6-bit + FRC)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4. TIANMA P1210WXF2MA01 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
5.TIANMA P1210WXF2MA01 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
-
Consumption
-
Signal Type :
LVDS (1 ch, 8-bit)
Interface Features :
Position
Down middle of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HFE
1.25mm
20 pins
1 pcs
6.TIANMA P1210WXF2MA01 Backlight Details
Backlight Features :
Type
WLED
Amount
-
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Physical Type
Connector
Backlight Driver :
No
