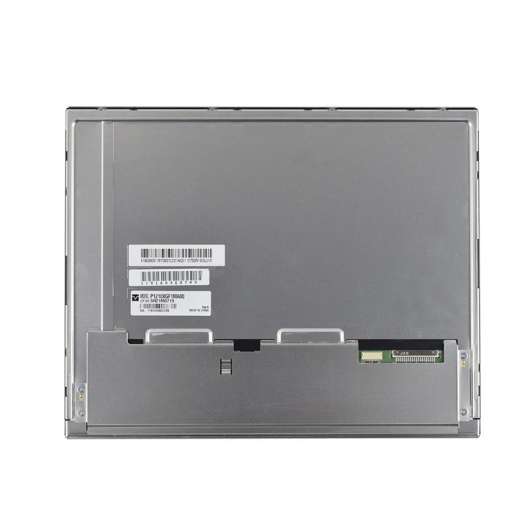

1.TIANMA P1210WXF2MA00 Application DetailsBasic Information :BrandTIANMAModelP1210WXF2MA00Typea-Si TFT-LCD , LCMUsed ForI...
| Model | P1210WXF2MA00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1280*800 |
| Brightness | 1500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210WXF2MA00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210WXF2MA00
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness
Screen Size
12.1 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 85 °C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，Reverse I/F,6/8bit
2.TIANMA P1210WXF2MA00 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800 [WXGA]
Dot Pitch(W×H)
0.068×0.204 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.204×0.204 mm [124PPI]
Mechanical Size :
Active Viewing
261.12(W)×163.2(H) mm
Overall Dim.
281.78(W)×183.17(H) mm
Bezel Opening
266.6(W)×168.6(H) mm
Depth(mm)
9.46±0.3 mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Spec :
Weight
TBD
Surface
Hard coating
3.TIANMA P1210WXF2MA00 Optical Details
Basic Information :
Luminance(cd/m²)
1500 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
20 (Typ.)(Tr+Td)
Color Performance :
Chromaticity
Wx:0.307; Wy:0.338
Support Color
262K/16.2M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6723K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
69%
sRGB
97% coverage
Adobe RGB
72% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4. TIANMA P1210WXF2MA00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
5.TIANMA P1210WXF2MA00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
TBD
Consumption
-
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
Down middle of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HFE
1.25mm
20 pins
1 pcs
6.TIANMA P1210WXF2MA00 Backlight Details
Backlight Features :
Type
WLED
Amount
11S5P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Lamp Electrical :
Input Current
325mA (Typ.)
Input Voltage
29.7/33/37.4V (Min./Typ./Max.)
Consumption
10.73W (Typ.)
Interface Features :
Position
-
Physical Type
Connector
Interface Detail :
Brand
Model
Amount
Pin Pitch
Pin Amount
Pin Assignment
JST
SM10B-SHLS-TF
1 pcs
1.0 mm
10 pins
BLE-10PINS-NNCAAACCAAC
Backlight Driver :
No
7. TIANMA P1210WXF2MA00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
4
1
520×345×74
N/A
0.0133
Outer box
8
2
544×365×250
N/A
0.0496
