1.TIANMAP1210WXF1MB00Application DetailsBasic Information :BrandTIANMAModelP1210WXF1MB00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210WXF1MB00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 1280*800 |
| Brightness | 1000cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

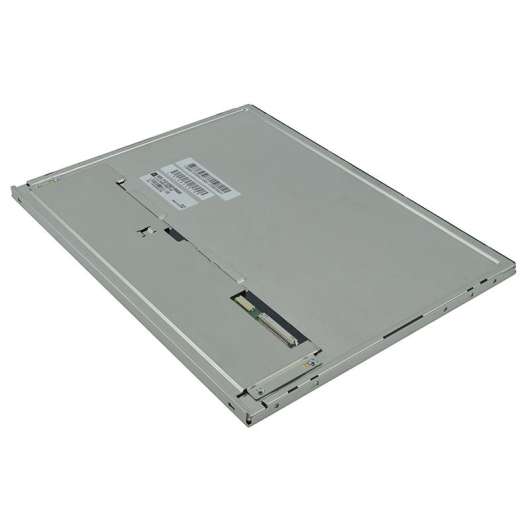

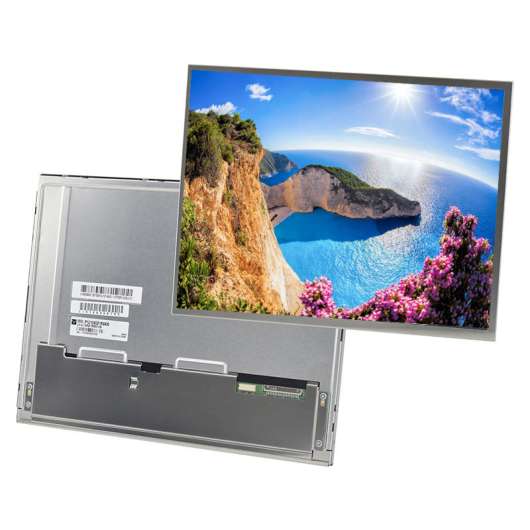

1.TIANMA P1210WXF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210WXF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
12.1 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
WLED Backlight，Life≥50K hours，With LED Driver，Reverse I/F,
2.TIANMA P1210WXF1MB00 Mechanical Details
Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(W×H)
0.068×0.204 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.204×0.204 mm [124PPI]
Mechanical Size :
Active Viewing
261.12(W)×163.2(H) mm
Overall Dim.
278(W)×184(H) mm
Bezel Opening
264.12(W)×166.2(H) mm
Depth(mm)
6.7/9.9 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Spec :
Weight
445g (Typ.)
Surface
Antiglare
3.TIANMA P1210WXF1MB00 Optical Details
Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Chromaticity
Wx:0.309; Wy:0.340
Support Color
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6602K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
71%
sRGB
91% coverage
Adobe RGB
73% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1210WXF1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
COG Built-in EK79202C8
5.TIANMA P1210WXF1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
200mA (Typ.)
Consumption
660mW (Typ.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
Down middle of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSAKT2407P30HB
1.0mm
30 pins
1 pcs
6.TIANMA P1210WXF1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
8S3P
Position
Edge light type (Top side)
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.0V
Input Current
787mA (Typ.)
Consumption
9.4W (Typ.)
7. TIANMA P1210WXF1MB00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
15
1
530×430×274
10.10
0.0624
