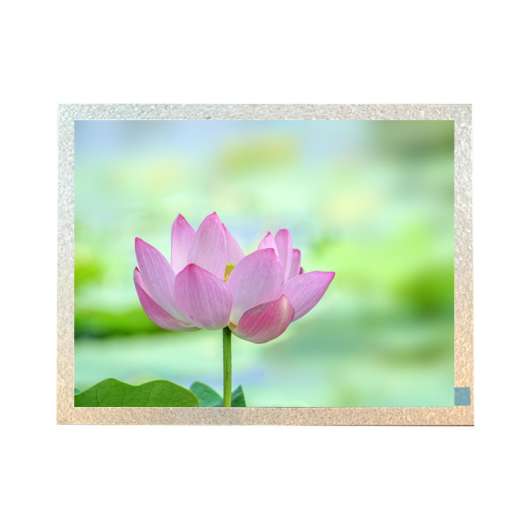

1.TIANMAP1210SVF1ME00Application DetailsBasic Information :BrandTIANMAModelP1210SVF1ME00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1210SVF1ME00 |
| Brand | TIANMA |
| Size | 12.1inch |
| Resolution | 800*600 |
| Brightness | 350cd/m2 |
| Perspective | 80/80/80/80 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1210SVF1ME00 Application Details
Basic Information :
Brand
TIANMA
Model
P1210SVF1ME00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
12.1 inch
Alias
Environment :
Storage Temp.
-30 ~ 80°C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
WLED Backlight，With LED Driver,6/8bit，Matte
2.TIANMA P1210SVF1ME00 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch
0.1025×0.3075 mm (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch
0.3075×0.3075 mm (H×V) [82PPI]
Mechanical Size :
Active Viewing
246×184.5 mm (H×V)
Bezel Area
249.05×188.3 mm (H×V)
Outline Dim.
279×209 mm (H×V)
Depth(mm)
6.27/9.0 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (W : H)
Orientation
Landscape type
Other Spec :
Weight
492g (Typ.)
Surface
Antiglare
3.TIANMA P1210SVF1ME00 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Support Color
262K/16.7M (6-bit / 8-bit)
4. TIANMA P1210SVF1ME00 Electronics Details
Frame Rate :
60Hz
5.TIANMA P1210SVF1ME00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
-
Consumption
-
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
6.TIANMA P1210SVF1ME00 Backlight Details
Backlight Features :
Type
WLED
Amount
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
30K(Typ.) Hours
Interface Features :
Position
-
Type
-
Lamp Driver
With LED Driver
