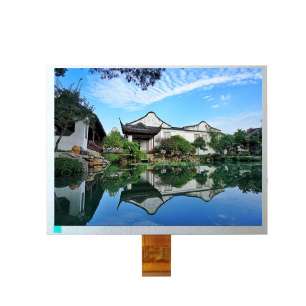

TM104TDGP10 Tianma 10.4" Industrial LCD | 1024x768 XGA Display Module

Tianma TM104TDGP10 is a 10 4-inch industrial LCD module with 1024x768 XGA resolution, designed for harsh environments Featuring wide temperature range (-20°C~70°C), brightness 450 nits, and anti-glare surface, it’s ideal for factory automation, test equipment, and portable devices Request a free quote or datasheet today!

Model	TM104TDGP10
Brand	TIANMA
Size	10.4inch
Resolution	1024*768
Brightness	450cd/m2
Perspective	85/85/85/85
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Click For Price

1.TIANMA 10.4" Industrial LCD TM104TDGP10 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM104TDGP10
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	10.4”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight，With LED Driver， 180°C;Reverse，6/8bit，Matte

2.TIANMA 10.4" Industrial LCD TM104TDGP10 Optical Details

Basic Information :	Luminance	450 cd/m²(Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	35 (Typ.)(Tr+Td) ms
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.308; Wy:0.332	Display Colors	262K/16.7M (6-bit / 8-bit)
Color Performance :	Color Temperature	6727K	White Variation	1.18/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	56%	sRGB	78% coverage
	Adobe RGB	59% coverage	DCI-P3	58% coverage
	Rec.2020	42% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.TIANMA 10.4" Industrial LCD TM104TDGP10 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.0685*0.2055 mm	Pixel Pitch (W*H)	0.20550.2055 mm (HV) [123PPI]
Physical Size :	Active Viewing(mm)	210.432157.824 mm (HV)	Bezel Area (mm)	213.43160.82 mm (HV)
Physical Size :	Outline Dim.(mm)	230175.8 mm (HV)	Depth(mm)	5.7/9.06 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	430g (Typ.)	Surface	Antiglare

4.TIANMA 10.4" Industrial LCD TM104TDGP10 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
D-IC Detail :	COG Built-in RM51150 + RM76870*2

5.TIANMA 10.4" Industrial LCD TM104TDGP10 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage		-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input	430mA (Typ.)
	Consumption			1.42W (Typ.)
Interface Features :	Position			-			Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch		Pins	Amount	Pin Assignment
	STARCONN		107A20-0021RA-G3-R		1.0mm		20pins	1 pcs	LVDS-20P1C8B-080C

6.TIANMA 10.4" Industrial LCD TM104TDGP10 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

8S4P

Position

Edge light type

Exchange

Lamp Shape

Array

Lamp Life

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

E&T

3808K-F05N-03R

1.25mm

5pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Input

12±1.0V

Current Input

0.33A (Typ.)

Consumption

3.96W (Typ.)

7.TIANMA 10.4" Industrial LCD TM104TDGP10 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	18pcs / box	12.75±0.64 Kgs	544365250 mm (LWH)

Your email address will not be published. Required fields are marked *

TM104SDHG30 Series 10.4" Industrial LCD Display | 800×600 SVGA Module P1040XGF1MA00 Industrial LCD | 10.4" 1300nits Wide Temp (-30~80℃) Anti-Vibration

TM104TDGP10 Tianma 10.4" Industrial LCD | 1024x768 XGA Display Module

TM104TDGP10 Tianma 10.4" Industrial LCD | 1024x768 XGA Display Module

Post A Message

Name*

Your E-Mail*

Message*

Related Products

TM104SDH03 Tianma 10.4" Ind...

TM104SDHG30 Series 10.4" In...

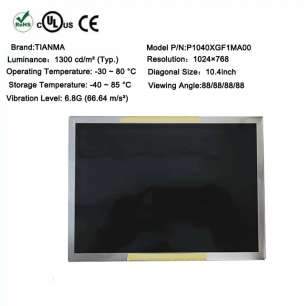

P1040XGF1MA00 Industrial LCD...
