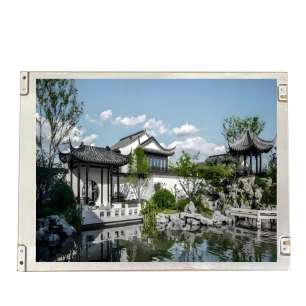

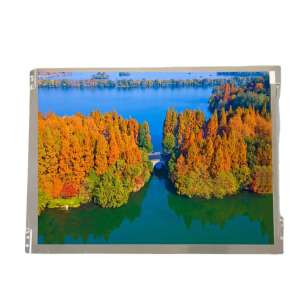

Tianma P1040XGF1MA00 10 4 " industrial LCD with 1300cd m² brightness, -30℃~80℃ operation range IP65 MIL-STD-810G certified anti-vibration design Global OEM support & DDP terms 24hrs technical response Download test report!
| Model | P1040XGF1MA00 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 1024*768 |
| Brightness | 1300 cd/m² (Typ.) |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、TIANMA P1040XGF1MA00 Application Features
Basic Information :
Manufacturer
TIANMA
Panel Model
P1040XGF1MA00
Panel Type
a-Si TFT-LCD , LCM
Alias
TM104TDGP13-00
Environment :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-40 ~ 85 °C
RoHS
RoHS
Vibration Level
6.8G (66.64 m/s²)
Used For :
Industrial，Rugged Industry，Outdoor High Brightness
Specific Features :
Wide Temperature，6.8G Vibration，Ultra High Brightness，WLED Backlight，Life≥100K hours，180°Reverse，6/8 bit，Matte
2、TIANMA P1040XGF1MA00 Mechanical Features
Panel Size :
10.4"
Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Pixel Configuration
RGB Vertical Stripe
Pixel Pitch (mm)
0.2055×0.2055 [123PPI]
Dot Pitch (mm)
0.0685×0.2055
Mechanical Size :
Active Area (mm)
210.432(H) × 157.824(V)
Bezel Area (mm)
213.432(H) × 160.82(V)
Outline Dimension (mm)
230(H) × 180.2(V)
Outline Depth (mm)
9.5±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
-
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Weight
430g (Typ.)
Panel Cover
-
Treatment
Antiglare
3、TIANMA P1040XGF1MA00 Optical Features
Basic Information :
Luminance (cd/m²)
1300 cd/m² (Typ.)
Response Time (ms)
35 (Typ.)(Tr+Td)
Viewing Angle (L/R/U/D)
88/88/88/88 (Typ.)(CR≥10)
Best View on
Symmetry
Display Mode
SFT, Normally Black, Transmissive
Contrast Ratio
1000 : 1 (Typ.) (Transmissive)
Dispaly Color :
Color Temperature
6485K
Display Colors
262K/16.7M (6-bit / 8-bit)
White Coordinate
X:0.313; Y:0.329
1931 Color Gamut :
NTSC Ratio
56%
sRGB Coverage
76%
Adobe RGB Coverage
58%
DCI-P3 Coverage
58%
Rec.2020 Coverage
42%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :
1.25/1.33 (Typ./Max.)(9 points)
Performance :
3D Tech
Sunlight Visibility
Reflectance
-
Sunlight Readable
-
4、TIANMA P1040XGF1MA00 Electronics Features
Reverse Scan :
Yes (180°)
Vertical Frequency :
60Hz
Driver IC :
Built-in RM51150*1 + RM76870*2
5、TIANMA P1040XGF1MA00 Backlight Features
Lamp Features:
Type
Position
Quantity
Shape
Life(Hours)
Lamp Exchange
WLED
Edge light type
6S4P
4 strings
100K (Typ.)
-
WLED Electrical :
Voltage Supply
Current Supply
Power
18.6/20.4V (Typ./Max.)
120mA (Typ.)
8.93W (Typ.)
Interface Features :
Position
Backlight Driver
Type
-
No
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pin Amount
Quantity
Configuration
JST
SM10B-SHLS-TF(LF)(SN)
1.0 mm
10 pins
1pcs
BLE-10PINS-NNCAACCAAC
6、TIANMA P1040XGF1MA00 Interface Features
Panel Driving Electrical :
Voltage Supply
Current Supply
Power
3.3V (Typ.)
300/450/675mA (Min./Typ./Max.)
1.485W (Typ.)
Interface Features :
Position
Signal
Type
-
LVDS (1 ch, 6/8-bit)
Connector
Connector Detail :
Brand
Model
Pin Pitch
Pin Amount
Quantity
Configuration
JAE
FI-SEB20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H
7、TIANMA P1040XGF1MA00 Packing Features
Package Type
Pcs/Package
Package LWH (mm)
Volume (m³)
6
520×345×74
0.0133
