TM101JDHG30 Tianma 10.1" IPS Medical Display | Full Viewing Industrial Panel

Tianma TM101JDHG30 10 1-inch IPS LCD offers 170° full viewing angles and medical-grade color accuracy sRGB With anti-glare coating, wide temperature range (-20°C~70°C), and LVDS interface, it’s ideal for surgical monitors, diagnostic imaging, and factory HMIs Download technical specs or request OEM samples

Model TM101JDHG30
Brand TIANMA
Size 10.1inch
Resolution 1280*800
Brightness 500cd/m2
Perspective 85/85/85/85
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA 10.1" Display TM101JDHG30   Application Details

Basic Detail :Panel BrandTIANMAModel NameTM101JDHG30
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForIndustrial，Medical Imaging，VOIP Phone
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight，Life>=50K hours,With LED Driver， 6/8bit，Reverse I/F


2.TIANMA 10.1" Display TM101JDHG30  Optical Details

Basic Information :Luminance500 cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed10/15 (Typ.)(Tr/Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeSFT, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.302; Wy:0.327Display Colors262K/16.7M (6-bit / 8-bit)
Color Temperature7125KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio51%sRGB72% coverage
Adobe RGB54% coverageDCI-P353% coverage
Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 10.1" Display TM101JDHG30  Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0565*0.1695 (H*V)Pixel Pitch (W*H)0.1695*0.1695 (H*V)  [149PPI]
Physical Size :Active Viewing(mm)216.96(H) *135.6(V)Bezel Area (mm)219.96(H) *138.6(V)
Outline Dim.(mm)231.22(H) *150.6(V)Depth(mm)4.4/6.6 (Typ./Max.)
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10 (H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight280g (Typ.)SurfaceHard coating


4.TIANMA 10.1" Display TM101JDHG30  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :COG Built-in ST5821CA*3 + ST5804CA*1


5.TIANMA 10.1" Display TM101JDHG30  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input280mA (Typ.)
Consumption924mW (Typ.)
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JAEHD1S040HA10.5mm40pins1 pcs


6.TIANMA 10.1" Display TM101JDHG30  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity6S5PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life50K(Typ.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage5.5/12.0/21.0V (Min./Typ./Max.)Input Current322mA (Typ.)
Consumption3.86W (Typ.)


7.TIANMA 10.1" Display TM101JDHG30    Packing Details

Package Box :QuantityWeightBox Size
19pcs / box8.37±0.42Kgs544*365*250 mm (L*W*H)

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Tianma 10.1" WXGA LCD Display - TM101JDHG38-00 LVDS 40-pin Display TM101JDHP03 Tianma 10.1" IPS Industrial Display | 1280x800 LVDS 40pin

Related Products

Tianma 10.1" WXGA LCD Display -...

Tianma 10.1" WXGA LCD Disp...

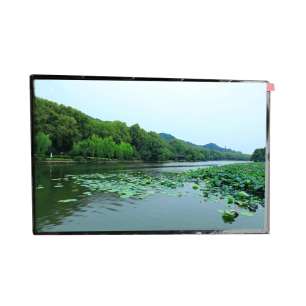

TM101JDHP03 Tianma 10.1" IPS Indu...
