Tianma 10.1" Outdoor IPS LCD - TM101JDHG33 1280×800 1000nits Display

Tianma TM101JDHG33 10.1-inch IPS LCD panel
Tianma TM101JDHG33 10.1-inch IPS LCD panel
Tianma TM101JDHG33 10.1-inch IPS LCD panel
  • Tianma TM101JDHG33 10.1-inch IPS LCD panel
  • Tianma TM101JDHG33 10.1-inch IPS LCD panel
  • Tianma TM101JDHG33 10.1-inch IPS LCD panel

Tianma 10.1" Outdoor IPS LCD - TM101JDHG33 1280×800 1000nits Display

Original Tianma TM101JDHG33 10 1-inch IPS LCD panel with 1280×800 WXGA resolution, 900nits brightness & IP65 rating Sunlight readable for outdoor kiosks, marine and transportation systems Request specs

Model TM101JDHG33
Brand TIANMA
Size 10.1inch
Resolution 1280*800
Brightness 900cd/m2
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -30 ~ 80 °C
Production State In Production
Click For Price

1.TIANMA 10.1"LCD TM101JDHG33  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM101JDHG33
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForIndustrial，Medical Imaging，Outdoor High Brightness
Maximum Ratings :OP Temperature-30 ~ 80 °CST Temperature-40 ~ 80 °C
RoHSRoHSVibration Level
Features :Wide Temperature，High Brightness ，WLED Backlight，With LED Driver，Reverse I/F, 6/8bit


2.TIANMA 10.1"LCD TM101JDHG33 Optical Details

Basic Information :Luminance900 cd/m²(Typ.)Contrast Ratio700:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeSFT, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.304; Wy:0.330Display Colors262K/16.7M (6-bit / 8-bit)
Color Temperature6971KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio55%sRGB76% coverage
Adobe RGB58% coverageDCI-P357% coverage
Rec.202041% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


3.TIANMA 10.1"LCD TM101JDHG33 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0565*0.1695 mm (H*V)Pixel Pitch (W*H)0.1695*0.1695 mm (H*V)  [149PPI]
Physical Size :Active Viewing(mm)216.96*135.6 mm (H*V)Bezel Area (mm)219.96(W)*138.6(H) mm
Outline Dim.(mm)229.46*149.1 mm (H*V)Depth(mm)6.2/9.6 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10(H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :WeightTBD
 		SurfaceHard coating


4.TIANMA 10.1"LCD TM101JDHG33 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
D-IC Detail :COG Built-in ST5084*1 + ST5821*3


5.TIANMA 10.1"LCD TM101JDHG33  Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input230mA (Typ.)
Consumption756mW (Typ.)
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JAEHD1S040HA10.5mm40pins1 pcs


6.TIANMA 10.1"LCD TM101JDHG33 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life40K(Typ.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage18±4VInput Current330mA (Typ.)
Consumption5.94W (Typ.)


7.TIANMA 10.1"LCD TM101JDHG33  Packing Details

Package Box :QuantityWeightBox Size
18 pcs / boxTBD544*365*250 mm  (L*W*H)

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Tianma 10.1" IPS LCD Panel - TM101JDHP01 1280×800 LVDS 40-pin Display Tianma 10.1" LVDS LCD Module - TM101DDHG01 1024×600 450nits Display

Related Products

Tianma 10.1" IPS LCD Panel - TM...

Tianma 10.1" IPS LCD Panel...

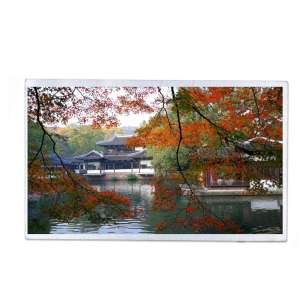

Tianma 10.1" LVDS LCD Module - ...
