Tianma 10.1" LVDS LCD Module - TM101DDHG01 1024×600 450nits Display

Tianma TM101DDHG01 10.1-inch LCD module
Tianma TM101DDHG01 10.1-inch LCD module
  • Tianma TM101DDHG01 10.1-inch LCD module
  • Tianma TM101DDHG01 10.1-inch LCD module

Tianma 10.1" LVDS LCD Module - TM101DDHG01 1024×600 450nits Display

Original Tianma TM101DDHG01 10 1-inch LCD module with 1024×600 resolution, 450nits brightness & 800:1 contrast ratio WLED backlight, LVDS interface for industrial HMI and kiosks Request OEM pricing

Model TM101DDHG01
Brand TIANMA
Size 10.1inch
Resolution 1024*600
Brightness 450 cd/m² (Typ.)
Perspective 80/80/75/80 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 10.1"LCD TM101DDHG01  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM101DDHG01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForIndustrial，Automotive Display
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :WLED Backlight，With LED Driver， 6/8bit，Matte


2.TIANMA 10.1"LCD TM101DDHG01 Optical Details

Basic Information :Luminance450 cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed7/9 (Typ.)(Tr/Td) (ms)
Viewing Angle80/80/75/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 8-bit)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio47%sRGB65% coverage
Adobe RGB49% coverageDCI-P348% coverage
Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 10.1"LCD TM101DDHG01 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*600 [WSVGA]ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0725*0.2088 mmPixel Pitch (W*H)0.2175*0.2088 mm  [117PPI]
Physical Size :Active Viewing(mm)222.72(W)*125.28(H) mmBezel Area (mm)219.96(W)*138.6(H) mm
Outline Dim.(mm)235(W)*143(H) mmDepth(mm)4.9/5.4 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
Other Spec :Weight202g (Typ.)SurfaceAntiglare, Hard coating (3H)


4.TIANMA 10.1"LCD TM101DDHG01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Driver IC :COG Built-in HX8282*1 + HX8677*2


5.TIANMA 10.1"LCD TM101DDHG01  Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input220mA (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
I-PEX20455-040E-12R0.5mm40pins1 pcsLVDS-40P1C8B-020C


6.TIANMA 10.1"LCD TM101DDHG01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life30K(Typ.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage12.0V (Typ.)Input Current400mA (Typ.)


7.TIANMA 10.1"LCD TM101DDHG01  Packing Details

Package Box :QuantityWeightBox Size
20 pcs / box6.65±0.67 Kgs530*350*250 mm  (L*W*H)

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Tianma 10.1" Outdoor IPS LCD - TM101JDHG33 1280×800 1000nits Display Tianma 10.1" Medical LCD - TM101JDHG32 1000nits Outdoor Grade

Related Products

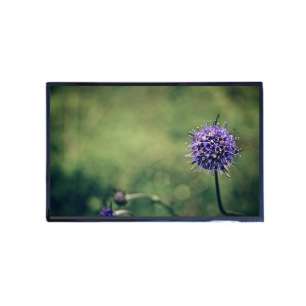

Tianma 10.1" IPS LCD Panel - TM...

Tianma 10.1" IPS LCD Panel...

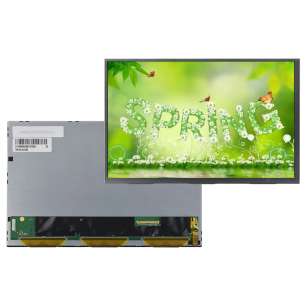

Tianma 10.1" Outdoor IPS LCD - ...

Tianma 10.1" Outdoor IPS L...

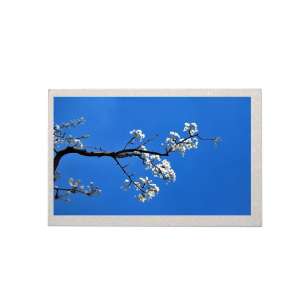

Tianma 10.1" Medical LCD - TM101...
