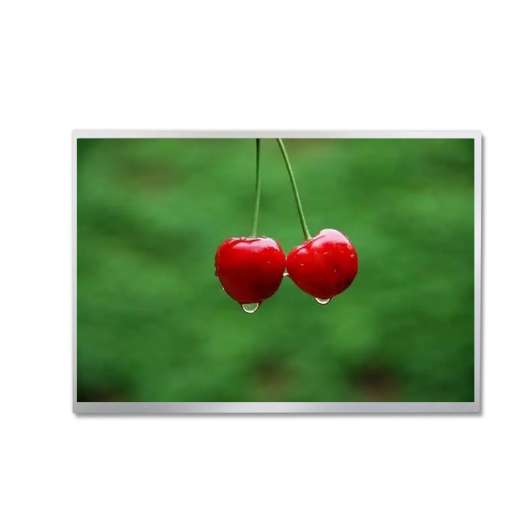

1.TIANMAP1010WXF1ME20 Application DetailsBasic Information :BrandTIANMAModelP1010WXF1ME20Typea-Si TFT-LCD , LCMUsed ForInd...
| Model | P1010WXF1ME20 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1280*800 |
| Brightness | 400cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -10 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WXF1ME20 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WXF1ME20
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.1 inch
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
-10 ~ 50 °C
RoHS
RoHS
Typical Features :
WLED Backlight

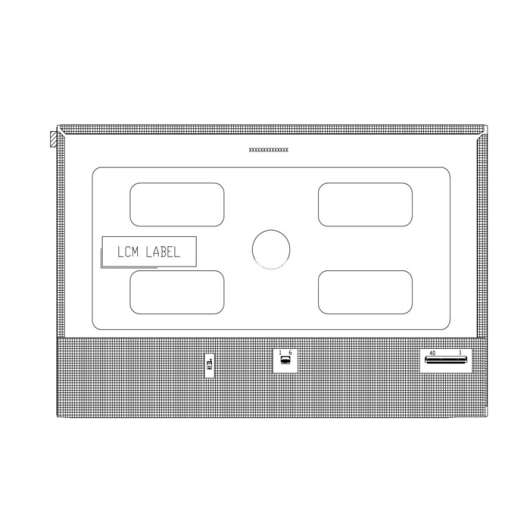

2.TIANMA P1010WXF1ME20 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
219.96(H) × 138.6(V)
Outline Dim.(mm)
229.46(H) × 149.1(V)
Depth(mm)
2.66/5.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
192g (Typ.)
Treatment
Hard coating
3.TIANMA P1010WXF1ME20 Optical Details
Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
X:0.300; Y:0.324
Display Colors
16.7M (8-bit)
Color Temperature
7289K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
52%
sRGB
73% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1010WXF1ME20 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption :
2.6W (Typ.)
5.TIANMA P1010WXF1ME20 Interface Details
Signal Electrical :
Voltage Supply
3.3/13/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Current Supply
62/30/0.66/0.66mA (Typ.)(IDD/AIDD/IGH/IGL)
Consumption
0.62W (Typ.)
Signal Type :
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
196534-40041-3
NA
40 pins
1 pcs
6.TIANMA P1010WXF1ME20 Backlight Details
Backlight Features :
Type
WLED
Amount
3S11P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
30K(Typ.) Hours
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
No
Driver Electrical :
Voltage Supply
9.0±0.3V
Current Supply
220/230mA (Typ./Max.)
Consumption
1.98W (Typ.)
7.TIANMA P1010WXF1ME20 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
12
520×345×74
N/A
0.0133
Outer box
36
544×365×250
13.00
0.0496
