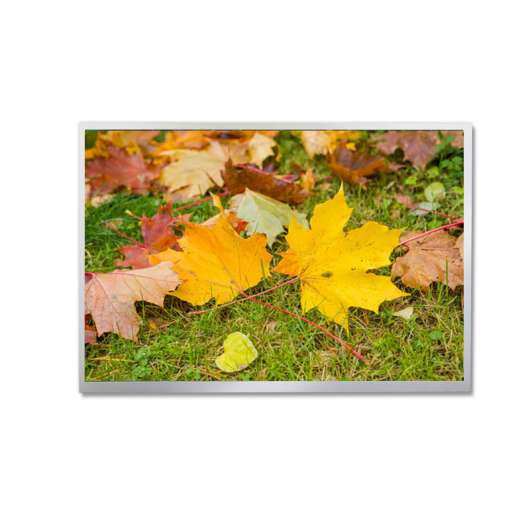

1.TIANMAP1010WXF2ME30 Application DetailsBasic Information :BrandTIANMAModelP1010WXF2ME30Typea-Si TFT-LCD , LCMUsed ForInd...
| Model | P1010WXF2ME30 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1280*800 |
| Brightness | 400cd/m2 |
| Perspective | 89/89/89/89 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WXF2ME30 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WXF2ME30
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.1 inch
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight，Matte
2.TIANMA P1010WXF2ME30 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
219.96(H) × 138.6(V)
Outline Dim. (H×V)
224.8×147.92 mm
Depth(mm)
3.0/4.8 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Other Spec :
Weight
TBD
Treatment
Antiglare
Holes & Brackets :
Without
3.TIANMA P1010WXF2ME30 Optical Details
Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
35 (Typ.)(Tr+Td)
Dispaly Color :
Color Temperature:
Support Color
Color Coordinate
-
16.7M (8-bit)
-
4. TIANMA P1010WXF2ME30 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
5.TIANMA P1010WXF2ME30 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
-
Consumption
-
Signal Type :
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
0.5
40 pins
1 pcs
6.TIANMA P1010WXF2ME30 Backlight Details
Backlight Features :
Type
WLED
Amount
-
Position
Edge light type
Replacement
-
Shape
Array
Life Time
30K(Typ.) Hours
WLED Electrical :
Input Voltage
Input Current
Power Consumption
15.0±1.0V
180mA (Typ.)
2.7W (Typ.)
Interface Features :
WLED Driver State
Physical Type
Interface Position
No
Included in signal interface
-
