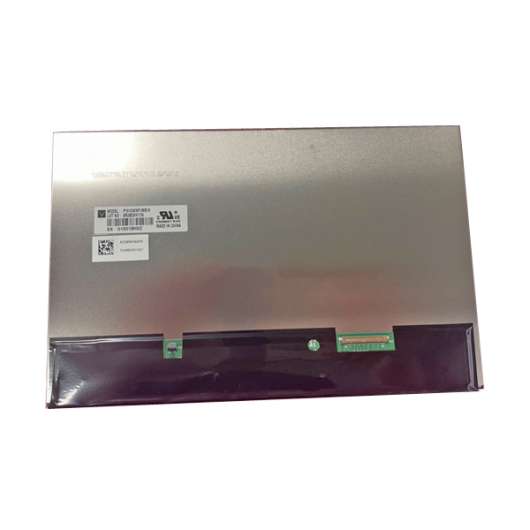

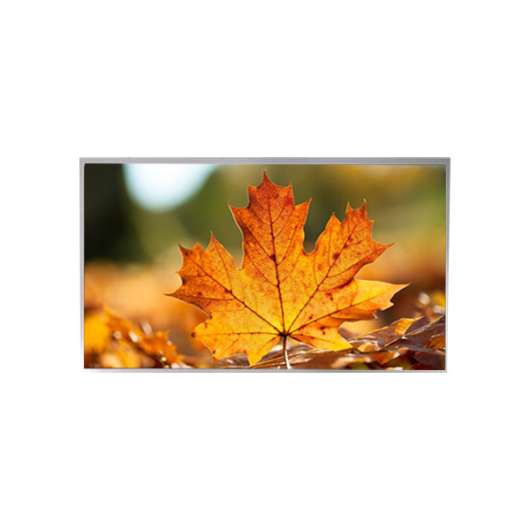

1.TIANMAP1010WXF1MB10 Application DetailsBasic Information :BrandTIANMAModelP1010WXF1MB10Typea-Si TFT-LCD , LCMUsed ForInd...
| Model | P1010WXF1MB10 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1280*800 |
| Brightness | 500cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WXF1MB10 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WXF1MB10
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.1 inch
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight，Life≥50K hours，With LED Driver
2.TIANMA P1010WXF1MB10 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
219.96(H) × 138.6(V)
Outline Dim.(mm)
231.22(W)×150.6(H)
Depth(mm)
4.4/7.1 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
290±15g
Treatment
Hard coating
3.TIANMA P1010WXF1MB10 Optical Details
Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
10/15 (Typ.)(Tr/Td) ms
Color Performance :
White Coordinate
Wx:0.312; Wy:0.336
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6482K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
54%
sRGB
75% coverage
Adobe RGB
57% coverage
DCI-P3
57% coverage
Rec.2020
41% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1010WXF1MB10 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption :
4.85W (Typ.)
5.TIANMA P1010WXF1MB10 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
250/375mA (Typ./Max.)
Consumption
825/1237mW (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSAK24025P40
0.5 mm
40 pins
1 pcs
6.TIANMA P1010WXF1MB10 Backlight Details
Backlight Features :
Type
WLED
Amount
6S5P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.0V
Current Supply
335mA (Typ.)
Consumption
4.02/6.03W (Typ./Max.)
7.TIANMA P1010WXF1MB10 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
19
544×365×250
8.58
0.0496
