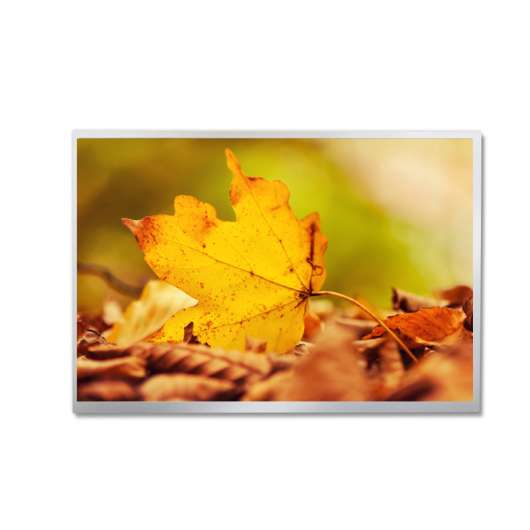

1.TIANMA P1010WXF1MA01 Application DetailsBasic Information :BrandTIANMAModelP1010WXF1MA01Typea-Si TFT-LCD , LCMUsed ForI...
| Model | P1010WXF1MA01 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1280*800 |
| Brightness | 1000cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WXF1MA01 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WXF1MA01
Type
a-Si TFT-LCD , LCM
Used For
Industrial,Outdoor High Brightness
Screen Size
10.1 inch
Environment :
Storage Temp.
-40 ~ 85 °C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Typical Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，6/8 bit
2.TIANMA P1010WXF1MA01 Mechanical Details
Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
219.96(H) × 138.6(V)
Outline Dim.(mm)
229.8(H) × 149(V)
Depth(mm)
6.2/9.48 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
TBD
Treatment
Hard coating
3.TIANMA P1010WXF1MA01 Optical Details
Basic Information :
Luminance(cd/m²)
1000 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.292; Wy:0.316
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
7970K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
54%
sRGB
75% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4. TIANMA P1010WXF1MA01 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
5.TIANMA P1010WXF1MA01 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
406/510mA (Typ./Max.)
Consumption
2.13/2.7W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-66
0.5 mm
40 pins
1 pcs
6.TIANMA P1010WXF1MA01 Backlight Details
Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) Hours
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
TBD
7.TIANMA P1010WXF1MA01 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
6
520×345×74
N/A
0.0133
Outer box
18
544×365×250
10.35
0.0496
