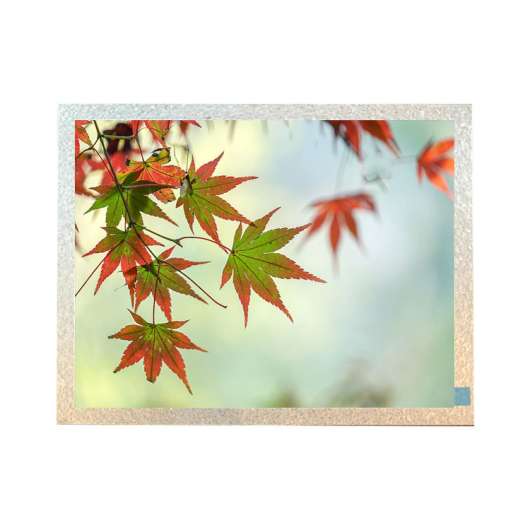

1.TIANMA P1010WSF1MB00 Application DetailsBasic Information :BrandTIANMAModelP1010WSF1MB00Typea-Si TFT-LCD , LCMUsed ForI...
| Model | P1010WSF1MB00 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1024*600 |
| Brightness | 700cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WSF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WSF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Healthcare
Screen Size
10.1 inch
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight，6/8 bit，Matte
2.TIANMA P1010WSF1MB00 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×600, WSVGA
Dot Pitch(mm)
0.0725×0.2088 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2175×0.2088 (H×V) [117PPI]
Mechanical Size :
Active Area(mm)
222.72(H) × 125.28(V)
Bezel Area(mm)
225.52(H) × 128.1(V)
Outline Dim.(mm)
235(H) × 143(V)
Depth(mm)
4.9(Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
-
Treatment
Antiglare
3.TIANMA P1010WSF1MB00 Optical Details
Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
FFS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
-
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4.TIANMA P1010WSF1MB00 Electronics Details
Frame Rate :
60Hz
5.TIANMA P1010WSF1MB00 Interface Details
Signal Type :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
-
6.TIANMA P1010WSF1MB00 Backlight Details
Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
30K(Typ.) Hours
