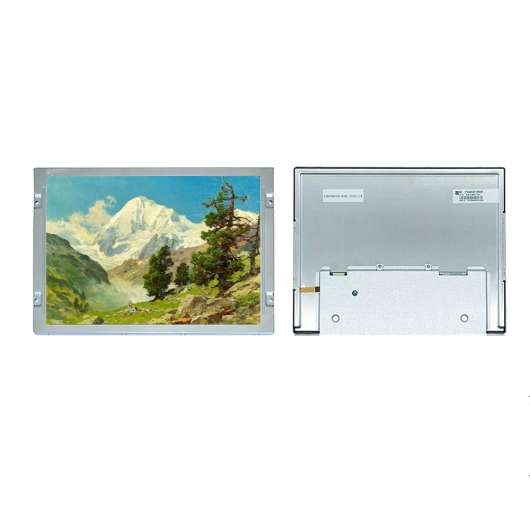

1.TIANMA P1010WSN1ME01 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP1010WSN1ME01Diagonal Size10.1"Applicati...
| Model | P1010WSN1ME01 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1024*600 |
| Brightness | 350 cd/m² (Typ.) |
| Perspective | 80/80/75/80 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WSN1ME01 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1010WSN1ME01
Diagonal Size
10.1"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Rating
-
Specific Features :
WLED Backlight，U/D,L/R Reverse，Matte
2. TIANMA P1010WSN1ME01 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×600, WSVGA
Dot Pitch
0.0725×0.2088 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2175×0.2088 mm (H×V) [117PPI]
Mechanical Size :
Display Area
222.72×125.28 mm (H×V)
Bezel Area
-
Outline Dim.
235×143 mm (H×V)
Outline Depth
5.0±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
-
Holes & Brackets :
Without
Other Features :
Weight
272±14g
Surface
Antiglare
3. TIANMA P1010WSN1ME01 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/75/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
35 (Typ.)(Tr+Td) ms
1931 Color Gamut :
NTSC Ratio
47%
sRGB
65% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1010WSN1ME01 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON
5. TIANMA P1010WSN1ME01 Backlight Details
Back-light Features :
Lamp Type
WLED
Amount
3S8P
Life Time
30K(Typ.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
9.6±0.9V
Current Input
224/240mA (Typ./Max.)
Consumption
2.15/2.52W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLE-2PINS-CA
6. TIANMA P1010WSN1ME01 Interface Detail
Signal Systerm :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3/11/22/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Current Input
5/40/0.5/0.5mA (Typ.)(IDD/AIDD/IGH//IGL)
Consumption
450mW
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
0.5 mm
50 pins
1 pcs
7. TIANMA P1010WSN1ME01 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
Inner box
14
N/A
N/A
Outer box
28
544×365×250
11.60
