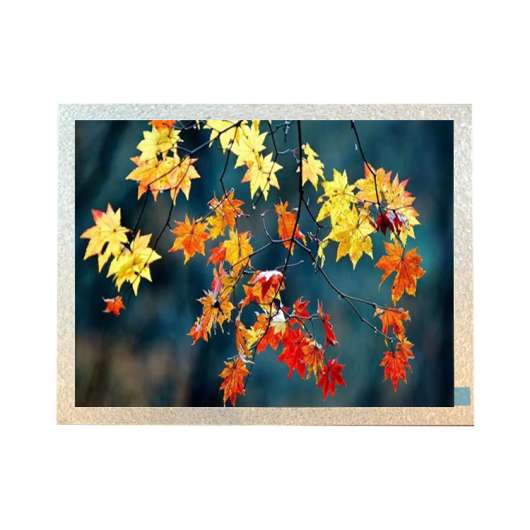

1.TIANMA P1010WSN1ME00 Application DetailsBasic Information :BrandTIANMAModelP1010WSN1ME00Typea-Si TFT-LCD , LCMUsed ForI...
| Model | P1010WSN1ME00 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1024*600 |
| Brightness | 450cd/m2 |
| Perspective | 80/80/75/80 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1010WSN1ME00 Application Details
Basic Information :
Brand
TIANMA
Model
P1010WSN1ME00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.1 inch
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight，With LED Driver，U/D,L/R Reverse，6/8 bit，Matte

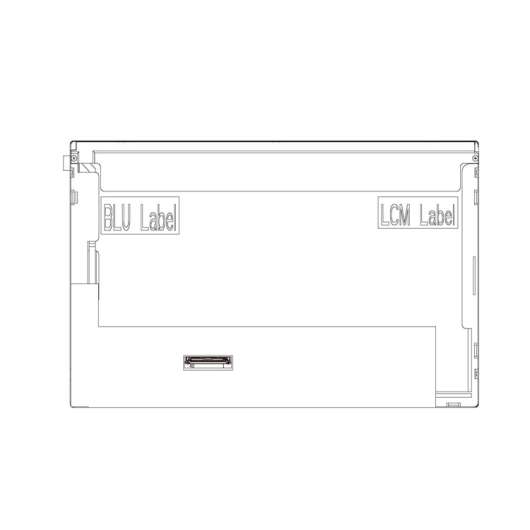

2.TIANMA P1010WSN1ME00 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×600, WSVGA
Dot Pitch(mm)
0.0725×0.2088 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2175×0.2088 (H×V) [117PPI]
Mechanical Size :
Active Area(mm)
222.72(H) × 125.28(V)
Bezel Area(mm)
225.52(H) × 128.1(V)
Outline Dim.(mm)
235(H) × 143(V)
Depth(mm)
4.9/5.4 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right, bezel
Other Spec :
Weight
202g (Typ.)
Treatment
Antiglare
3.TIANMA P1010WSN1ME00 Optical Details
Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/75/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
16 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.7M (6-bit / 8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
48%
sRGB
67% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1010WSN1ME00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
5.TIANMA P1010WSN1ME00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
220mA (Typ.)
Consumption
726mW (Typ.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-66
0.5 mm
40 pins
1 pcs
6.TIANMA P1010WSN1ME00 Backlight Details
Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
30K(Typ.) Hours
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
450mA (Typ.)
Consumption
5.4W (Typ.)
7.TIANMA P1010WSN1ME00 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
16
520×345×111
N/A
0.0199
Outer box
32
544×365×250
12.90
0.0496
