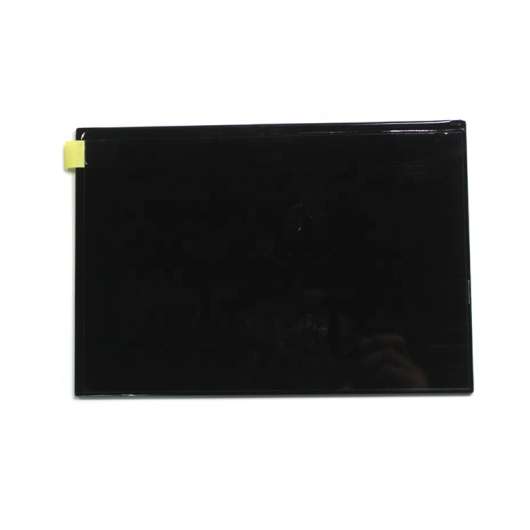

1.TIANMA P1010WSN1MA00Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP1010WSN1MA00Diagonal Size10.1"Application...
| Model | P1010WSN1MA00 |
| Brand | TIANMA |
| Size | 10.1inch |
| Resolution | 1024*600 |
| Brightness | 920 cd/m² (Typ.) |
| Perspective | 80/80/75/80 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. TIANMA P1010WSN1MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1010WSN1MA00
Diagonal Size
10.1"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
-
Specific Features :
Hight Brightness,WLED Backlight,6/8bit，Matte
2. TIANMA P1010WSN1MA00 Mechanical Details
Pixel Features
Pixel Format
1024(RGB)×600, WSVGA
Dot Pitch
0.0725×0.2088 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2175×0.2088 mm (H×V) [117PPI]
Mechanical Size :
Active Viewing
222.72×125.28 mm (H×V)
Outline Dimension
-
Bezel Area
235×143 mm (H×V)
Outline Depth
5.6 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Mounting :
Without
Other Features :
Weight
275g (Typ.)
Surface
Antiglare
3. TIANMA P1010WSN1MA00 Optical Details
Basic Information :
Brightness
920 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/75/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
16 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
-
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC))
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4. TIANMA P1010WSN1MA00 Electronics Details
Frame Frequency :
60Hz
5. TIANMA P1010WSN1MA00 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
-
Life Time
30K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Backlight Driver
No
6. TIANMA P1010WSN1MA00 Interface Details
Signal Systerm :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
