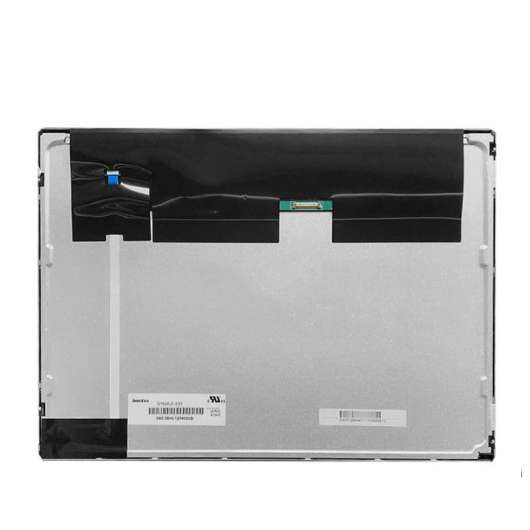

G150XJE-E01 Chimei Innolux 15" LCD Display| 1024x768 XGA Original Panel

Original Chimei Innolux G150XJE-E01 15-inch TFT LCD panel. 1024x768 XGA resolution, 300cd/m² brightness, 30-pin LVDS interface. Industrial-grade for medical devices, HMI, and kiosks. Request datasheet.

Model	G150XJE-E01
Brand	Chimei Innolux
Size	15inch
Resolution	1024*768
Brightness	400cd/m2
Perspective	88/88/88/88
Interface	eDP
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

1.Chimei Innolux G150XJE-E01 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G150XJE-E01
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial，Automotive Display，Gaming
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	-
Features :	WLED Backlight，Life>=70K hours,With LED Driver，6/8bit，Matte

2.Chimei Innolux G150XJE-E01 Optical Details

Basic Information :	Luminance	400 cd/m²(Typ.)	Contrast Ratio	2500:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	16/7 (Typ.)(Tr/Td) ms
	Viewing Angle	88/88/88/88(Typ.)(CR≥10)	Operating Mode	NPVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 8-bit)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	92% coverage
	Adobe RGB	71% coverage	DCI-P3	74% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Chimei Innolux G150XJE-E01 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0990.297 mm (HV)	Pixel Pitch (W*H)	0.2970.297 mm (HV) [85PPI]
Physical Size :	Active Viewing(mm)	304.128228.096 mm (HV)	Bezel Area (mm)	307.4231.3 mm (HV)
Physical Size :	Outline Dim.(mm)	326.5253.5 mm (HV)	Depth(mm)	9.0/9.6 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	942/980g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

4.Chimei Innolux G150XJE-E01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	9.8W (Max.)

5.Chimei Innolux G150XJE-E01 Interface Details

Signal Systerm :		eDP (1 Lane)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		440/535mA (Typ./Max.)
	Consumption			-
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	I-PEX		20455-030E-76		0.5mm			30pins	1 pcs		EDP-30P1L-030A

6.Chimei Innolux G150XJE-E01 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position		Edge light type
	Exchange	Replaceable		Lamp Shape		-	Lamp Life		70K(Typ.) Hours
Interface Features :	Position	-		Physical Type		included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current		0.68±0.2A		Input Voltage			12.0±1.2V
	Consumption		8.2W (Max.)

7.Chimei Innolux G150XJE-E01 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	16pcs / box	16.7 Kgs	511420360 mm
