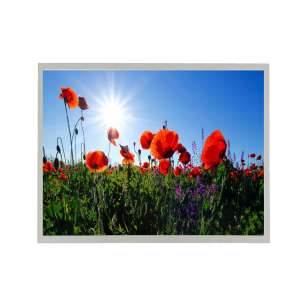

Original Innolux G150XJE-E05 15-inch IPS TFT LCD panel with 178° wide viewing angle 1024x768 XGA resolution, 350cd m² brightness, eDP,industrial-grade reliability For medical equipment, factory automation & POS terminals Download datasheet, request OEM pricing
| Model | G150XJE-E05 |
| Brand | Chimei Innolux |
| Size | 15inch |
| Resolution | 1024*768 |
| Brightness | 350cd/m² |
| Perspective | 88/88/88/88 |
| Interface | eDP |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.Innolux G150XJE-E05 Application Details
Basic Info :
Panel Brand
INNOLUX
Panel Model
G150XJE-E05
Diagonal Size
15.0"
Application
Industrial，Gaming
Panel Type
a-Si TFT-LCD , LCM
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-20 ~ 70 °C
RoHS State
RoHS
Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
WLED Backlight，Life≥50K hours，With LED Driver， 6/8bit ，Matte
2.Innolux G150XJE-E05 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch (W×H)
0.099×0.297 mm
Configuration
RGB Vertical Stripe
Pixel Pitch (W×H)
0.297×0.297 mm [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
-
Bezel Opening
-
Outline Depth
6.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Other Detail :
Mass
-
Surface
Antiglare, Hard coating (3H)
3.Innolux G150XJE-E05 Optical Details
Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
2500 : 1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88(Typ.)(CR≥10)
Optical Mode
NPVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
16/7 (Typ.)(Tr/Td) (ms)
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4.Innolux G150XJE-E05 Electronics Details
Frame Frequency :
60Hz
5.Innolux G150XJE-E05Backlight Details
Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in signal interface
Position
-
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
-
6.Innolux G150XJE-E05 Interface Detail
Signal Systerm :
eDP (1 Lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
440/535mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20455-030E-76
0.5 mm
30 pins
1 pcs
LVDS-20P1C8B-160A
