New G150XNE-L02 Innolux 15" LCD Display | 1024x768 XGA Original Panel

New G150XNE-L02 Innolux 15inch LCD Display
New G150XNE-L02 Innolux 15inch LCD Display
  • New G150XNE-L02 Innolux 15inch LCD Display
  • New G150XNE-L02 Innolux 15inch LCD Display

New G150XNE-L02 Innolux 15" LCD Display | 1024x768 XGA Original Panel

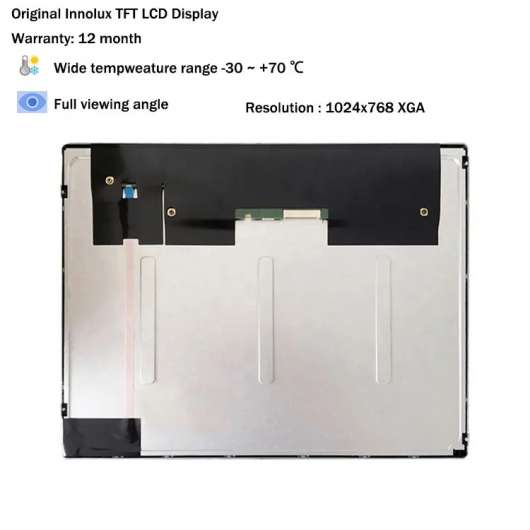

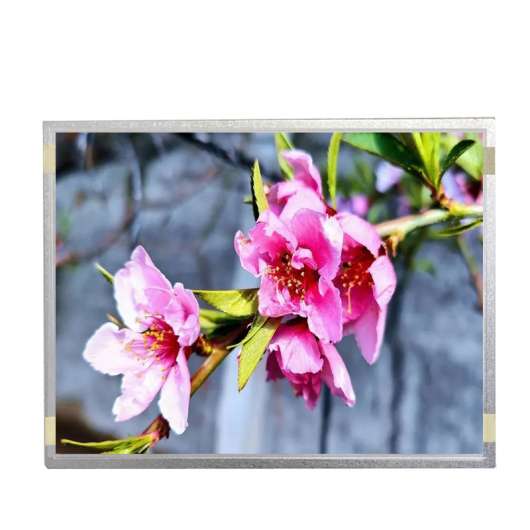

New Original Innolux G150XNE-L02 15-inch XGA LCD panel 1024x768 resolution, 350cd m² brightness, LVDS interface Industrial-grade for HMI, test equipment & kiosks Get datasheet, pinout diagram & volume pricing Compatible with G150XNE-L01

Model G150XNE-L02
Brand Chimei Innolux
Size 15inch
Resolution 1024*768
Brightness 350 cd/m² (Typ.)
Perspective 88/88/88/88 (Typ.)
Interface LVDS
Operating Temp -30 ~ 70 °C
Production State In Production
Click For Price

1.Chimei Innolux G150XNE-L02 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name G150XNE-L02
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size15”Designed ForIndustrial，Game
Maximum Ratings :OP Temperature-30 ~ 70  °CST Temperature-40 ~ 70  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Wide Temperature，WLED Backlight，Life>=70K hours,With LED Driver，Upside I/F,180°;Reverse，6/8bit，Matte


2.Chimei Innolux G150XNE-L02 Optical Details

Basic Information :Luminance350 cd/m²(Typ.)Contrast Ratio2500:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed13/5 (Typ.)(Tr/Td) ms
Viewing Angle88/88/88/88 (Typ.)(CR≥10)Operating ModeNPVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio72%sRGB92% coverage
Adobe RGB71% coverageDCI-P374% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux G150XNE-L02 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch 0.099*0.297 mm (H*V)Pixel Pitch (W*H)0.297*0.297 mm (H*V)  [85PPI]
Physical Size :Active Viewing(mm)304.128*228.096 mm (H*V)Bezel Area (mm)307.4*231.3 mm (H*V)
Outline Dim.(mm)326.5*253.5 mm (H*V)Depth(mm)9.1±0.5 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (W:H)OrientationLandscape type
Fixation :Side mounting holes (4-M3) on left, right bezel
Other Spec :Weight0.97/1.00Kgs (Typ./Max.)SurfaceAntiglare, Hard coating (3H)


4.Chimei Innolux G150XNE-L02 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Power Consumption :7.9W (Typ.)


5.Chimei Innolux G150XNE-L02 Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input455/545mA (Typ./Max.)
Consumption-
Interface Features :PositionRearPhysical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment

CID520D1HR0-NH1.25mm20pins1 pcs


6.Chimei Innolux G150XNE-L02 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life70K(Typ.) (Hours)
Interface Features :Position-Physical TypeConnector
Backlight Driver :With LED Driver
Interface Detail :BrandModelPin Pitch PinsAmountConfiguration
CviLuxCI4205M2HRP-NH1.25 mm5 pins1 pcs
Driver Electrical :Input Current0.5±1AInput Voltage12.0±1.2V
Consumption6/6.1W (Typ./Max.)


7.Chimei Innolux G150XNE-L02 Carton Details

Package Box :AmountWeightSize (L*W*H)
16pcs / box18 Kgs511*420*360 mm
