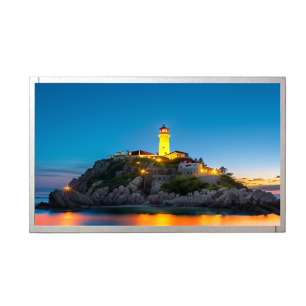

Innolux G156HCE-E01 15.6-inch FHD 450-nit eDP LCD Panel

Innolux G156HCE-E01 15.6` IPS Industrial LCD
Innolux G156HCE-E01 15.6` IPS Industrial LCD
  • Innolux G156HCE-E01 15.6` IPS Industrial LCD
  • Innolux G156HCE-E01 15.6` IPS Industrial LCD

Innolux G156HCE-E01 15.6-inch FHD 450-nit eDP LCD Panel

Innolux G156HCE-E01 is a 15 6-inch 1920 × 1080 AAS TFT LCD panel with 450 cd m² typical brightness, a 40-pin eDP interface and a specified operating ambient temperature range of 0°C to +60°C Contact IDT Display for the datasheet, availability and integration checks

Model G156HCE-E01
Brand Chimei Innolux
Size 15.6inch
Resolution 1920*1080
Brightness 450cd/m2
Perspective 89/89/89/89
Interface eDP
Operating Temp 0 ~ 60 °C
Production State Contact us for current lifecycle status and availability

Innolux G156HCE-E01 15.6-inch Full HD eDP LCD Panel

The Innolux G156HCE-E01 is a 15.6-inch TFT LCD module with a native resolution of 1920 × 1080 pixels, AAS display mode and an LED backlight. It provides 450 cd/m² typical white luminance, a 1000:1 typical contrast ratio and a 40-pin, 2-lane eDP interface.

The specified operating ambient temperature range is 0°C to +60°C, subject to the temperature and humidity conditions in the manufacturer specification. Confirm the complete model number, controller compatibility and installation requirements before selecting this panel for a new design or replacement.

G156HCE-E01 Specifications

ParameterSpecification
ManufacturerInnolux
ModelG156HCE-E01
Screen Size15.6 inches diagonal
Native Resolution1920 × 1080 pixels, Full HD
Aspect Ratio16:9
Display ModeAAS, normally black, transmissive
Display Colors16.7 million
Pixel Pitch0.17925 × 0.17925 mm
Active Area344.16 × 193.59 mm
White Luminance450 cd/m² typical; 360 cd/m² minimum
Contrast Ratio1000:1 typical; 700:1 minimum
Viewing Angles89° typical in each direction, measured at CR ≥ 10
Response Time14 ms rise and 11 ms fall, typical
Color Gamut72% NTSC typical
Surface TreatmentAnti-glare, hard coating (3H)
Signal Interface2-lane eDP, 40-pin connector
Frame Rate60 Hz typical
LCD Logic Supply3.3 V typical; specified range 3.0–3.6 V
Backlight Converter Supply12.0 V typical; normal operating range 10.8–13.2 V
Total Power Consumption11.1 W maximum under the specified test conditions
Outline Dimensions351.84 × 208.88 mm typical; thickness 6.5 mm maximum
Weight550 g typical
Operating Ambient Temperature0°C to +60°C, subject to specified humidity limits
Storage Temperature−20°C to +70°C, subject to specified storage conditions
Lifecycle and AvailabilityContact IDT Display for current confirmation

Optical values apply under the manufacturer’s specified measurement conditions, including an ambient temperature of 25 ± 2°C. Typical values are reference values and should not be treated as guaranteed minimum performance.

eDP Interface and Power Requirements

The G156HCE-E01 uses a 40-pin eDP connection with two main-link data lanes. The specification identifies the panel connector as I-PEX 20455-040E-76 and the mating connector as I-PEX 20453-040T-03.

Check the complete connector pin assignment, cable orientation, eDP timing and power sequence before connection. A matching connector shape or pin count alone does not establish electrical compatibility.

  • LCD logic supply: 3.3 V typical, with a specified range of 3.0–3.6 V.
  • Backlight converter supply: 12.0 V typical, with a normal operating range of 10.8–13.2 V.
  • Backlight brightness is controlled through the specified enable and PWM signals.
  • The module requires a compatible eDP source or controller; it does not accept HDMI directly.

The 18 V value listed in the absolute maximum ratings is not the recommended backlight operating voltage. Use the normal operating conditions and sequencing requirements when designing the power supply.

Operating Environment and Backlight Life

The specified operating ambient temperature range is 0°C to +60°C. The panel must remain within the manufacturer’s temperature and humidity limits, with no condensation. Evaluate enclosure temperature, ventilation and heat from surrounding components in the finished equipment.

The specification lists a 50,000-hour LED lifetime value under defined test conditions and defines lifetime by a reduction in brightness to 50% or less of the original value. This is an estimated backlight characteristic, not a warranty period or a guarantee of complete display service life. Elevated temperature can reduce backlight life and affect color.

The anti-glare surface and 450 cd/m² typical brightness do not independently establish outdoor or direct-sunlight suitability. Assess the complete display assembly under the intended ambient lighting, thermal and environmental conditions.

Replacement and Integration Checks

The G156HCE-E01 may be evaluated for equipment displays, control interfaces and monitor assemblies where its specifications match the system requirements. Final suitability requires validation in the intended equipment.

Before approving a replacement, compare:

  • The complete original model number and specification revision.
  • Resolution, refresh timing, eDP configuration and controller support.
  • Connector position, pin assignment and cable wiring.
  • Active area, outline dimensions, maximum thickness and mounting arrangement.
  • Logic supply, backlight supply, dimming controls and power sequence.
  • Brightness, viewing requirements and operating environment.

Do not assume that another 15.6-inch Full HD panel is interchangeable. In particular, an LVDS panel requires a different signal interface from this eDP model.

Frequently Asked Questions

What are the resolution and brightness of the G156HCE-E01?

The native resolution is 1920 × 1080 pixels. White luminance is 450 cd/m² typical and 360 cd/m² minimum under the specified test conditions.

Does the G156HCE-E01 use LVDS or eDP?

It uses a 40-pin, 2-lane eDP interface. It should not be connected to an LVDS output without an appropriate interface conversion solution.

Is the G156HCE-E01 a wide-temperature panel?

The supplied specification lists an operating ambient range of 0°C to +60°C. It does not specify operation at −20°C or −30°C. Select against the actual temperature limits required by the equipment.

Can this panel connect directly to HDMI?

No. An HDMI source requires a suitable HDMI-to-eDP controller configured for this panel, together with compatible wiring, power supplies and backlight controls.

Is this model currently in production or in stock?

The historical product specification does not establish current production status or inventory. Contact IDT Display with the complete model number, quantity and required delivery date for confirmation.

Related LCD Selection Guides

Request a Datasheet and Quotation

Send the complete model number G156HCE-E01, required quantity, application and delivery schedule. For replacement evaluation, include the original panel label, controller information, cable details and installation requirements.

Request the G156HCE-E01 datasheet and quotation

Specification Reference

This description is based on the Innolux G156HCE-E01 Product Specification, Version 2.4, dated 19 July 2023. Refer to the applicable manufacturer specification and outline drawing for complete limits, tolerances, pin assignments and test conditions.

Confirm the applicable specification revision before purchase. Current lifecycle status, availability, accessories and delivery terms require confirmation for the specific order.

G156HCE-E01 Application and Integration

The Innolux G156HCE-E01 can be evaluated for equipment interfaces, information terminals and monitor assemblies requiring a 15.6-inch Full HD display. Suitability depends on the controller, mechanical design, power supplies and operating environment.

Equipment Interfaces and Control Displays

The 1920 × 1080 resolution supports detailed interface layouts, equipment status information and operating instructions. Confirm that the host controller supports the panel's 2-lane eDP interface and specified timing.

Information Terminals and Monitor Assemblies

The AAS display mode and wide viewing angles may be useful where users view the screen from different positions. Evaluate brightness, reflections and readability in the finished installation. The panel requires compatible control electronics, cables and power supplies.

Replacement Evaluation

Compare the original panel's complete model number, interface, connector pin assignment, dimensions, mounting arrangement and backlight controls. A shared 15.6-inch size and Full HD resolution do not establish interchangeability.

Environmental Requirements

Keep the panel within its specified operating ambient range of 0°C to +60°C and the manufacturer's humidity limits, with no condensation. Check enclosure heat and ventilation. Outdoor, direct-sunlight and extended-temperature applications require separate system validation.

Information Required for Integration Support

  • Application and installation environment.
  • Host controller or motherboard model and available display output.
  • Original panel model, cable details and mechanical drawings.
  • Power supply and backlight dimming requirements.
  • Sample quantity, expected demand and delivery schedule.

Contact IDT Display to request the applicable datasheet and discuss compatibility before ordering or approving a replacement.
