AMT9557 6.52-inch 4-wire resistive touch screen offers reliable performance for industrial HMI, medical devices and kiosk systems. Request samples today!
| Part No. | AMT9557 |
| Brand | AMT |
| Thickness Overall | 6.52 inch |
| Thickness Overall | 1.4mm |
| Tail Design | FPC / ZIF |
| Outside Area | 153.00x118.00mm |
| Active Area | 132.48x99.36mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

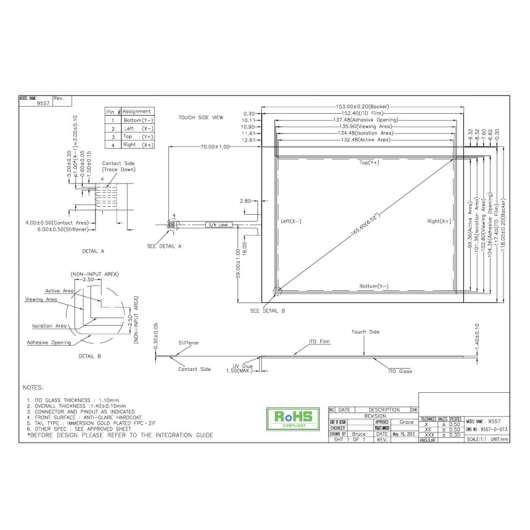

6.52 inch 4-wire resistance touch screen AMT9557
AMT9501 6.52 inch 4-wire resistance touch screen
model
9557
Brand
AMT
Size (inches)
6.52inch
OVERALL THICKNESS :
1.4mm
Tail Design
FPC / ZIF
Outline(mm)
153.00 x 118.00
Active Area(mm)
132.48 x 99.36
ITO GLASS THICKNESS :
1.10mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
TAIL TYPE
IMMERSION GOLD PLATED FPC，ZIF
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
AMT9557 6.52-inch 4-Wire Resistive Touch Screen
Durable & Cost-Effective Touch Solution for Harsh Environments
Technical Specifications:
Model: AMT9557
Type: 4-Wire Resistive
Active Area: 132.48 × 99.36 mm (6.52" diagonal)
Surface Hardness: 3H
Transmittance: ≥82%
Interface: 4-Wire Analog
Operating Voltage: 5V DC ±10%
Touch Points: Single
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Industrial Applications:
Industrial HMI & Control Panels
Medical Diagnostic Equipment
POS & Kiosk Systems
Automotive Displays
Test & Measurement Devices
Embedded Control Systems
✔ Competitive Advantages:
✓ Higher Accuracy - Improved linearity for precise control
✓ Custom Options Available - Anti-glare/anti-fingerprint coatings
✓ Rugged Construction - Withstands demanding environments
✓ Fast Prototyping - Samples available in 3-5 working days
✓ Quality Certified - CE, RoHS compliant
