AMT9525 6 4-inch 4-wire resistive touch screen features scratch-resistant surface & wide temp range Ideal for HMI, medical & kiosk applications Samples available!
| Part No. | AMT9525 |
| Brand | AMT |
| Thickness Overall | 6.4 inch |
| Thickness Overall | 1.4mm |
| Tail Design | FPC / ZIF |
| Outside Area | 146.30 x 114.55mm |
| Active Area | 130.00 x 97.50mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

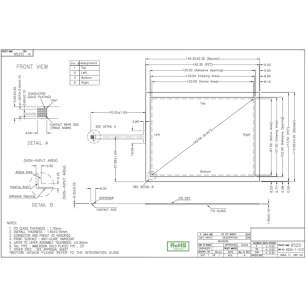

AMT9525 6.4 inch 4-wire resistance touch screen
model
9525
Brand
AMT
Size (inches)
6.4inch
OVERALL THICKNESS :
1.40mm
Tail Design
FPC / ZIF
Outline(mm)
146.30 x 114.55
Active Area(mm)
130.00 x 97.50
ITO GLASS THICKNESS :
1.10mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.30mm
TAIL TYPE
IMMERSION GOLD PLATED FPC，ZIF
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
AMT9525 6.4-inch 4-Wire Resistive Touch Screen
Durable Touch Solution for Industrial Environments
✔ Key Features:
Scratch-Resistant Surface - 3H hardness coating for extended lifespan
Wide Temperature Operation - Stable performance (-30°C to +80°C)
High Optical Clarity - ≥83% light transmittance
Multi-Input Support - Works with stylus, gloves or bare fingers
Easy Integration - Standard 4-wire analog interface
✔ Technical Specifications:
Model: AMT9525
Technology: 4-Wire Resistive
Active Area: 130.56 × 97.92 mm (6.4" diagonal)
Surface Material: Hard-coated PET film
Interface: 4-Wire Analog (5V DC)
Touch Points: Single
Operating Temp: -30°C to +80°C
Storage Temp: -40°C to +85°C
Transmittance: ≥83%
Surface Hardness: 3H
Lifespan: 5+ million touches
✔ Industrial Applications:
Industrial HMI Panels
Medical Diagnostic Equipment
POS/Kiosk Systems
Vehicle-Mounted Displays
Test & Measurement Devices
Factory Automation Controls
