Industrial-grade AMT9501 6 4-inch 4-wire resistive touch screen with scratch-resistant surface Ideal for HMI, medical devices & kiosks Request samples now!
| Part No. | AMT9501 |
| Brand | AMT |
| Thickness Overall | 6.4 inch |
| Thickness Overall | 1.9mm |
| Tail Design | Integral / AMP-C |
| Outside Area | 152.90 x 120.00mm |
| Active Area | 130.60 x 98.40mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

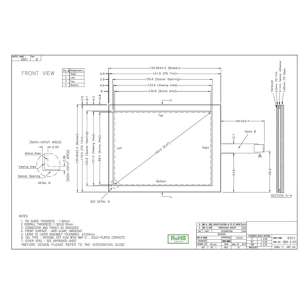

6.4 inch 4-wire resistance touch screen AMT9501
AMT9501 6.4 inch 4-wire resistance touch screen
model
9501
Brand
AMT
Size (inches)
6.4inch
OVERALL THICKNESS :
1.90mm
Tail Design
Integral / AMP-C
Outline(mm)
152.90 x 120.00
Active Area(mm)
130.60 x 98.40
ITO GLASS THICKNESS :
1.60mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.50mm
TAIL TYPE
INTEGRAL PET FILM WITH AMP-C，GOLD-PLATED CONTACTS
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
AMT9501 6.4-inch 4-Wire Resistive Touch Screen
Reliable Touch Solution for Industrial Applications
✔ Key Features:
Durable 3H Hardness Surface - Resists daily wear and scratches
Precise Touch Response - Works with stylus, gloves or bare fingers
Wide Temperature Range - Stable performance from -20°C to +70°C
Easy Integration - Standard 4-wire analog interface
High Optical Clarity - ≥82% light transmittance
Technical Specifications:
Model: AMT9501
Technology: 4-Wire Resistive
Active Area: 130.56 × 97.92 mm (6.4" diagonal)
Surface Material: Hard-coated PET film
Interface: 4-Wire Analog (5V DC)
Touch Points: Single
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Transmittance: ≥82%
Surface Hardness: 3H
Industrial Applications:
Factory Automation HMI
Medical Diagnostic Equipment
POS/Kiosk Systems
Vehicle-mounted Displays
Test & Measurement Devices
Industrial Control Panels
