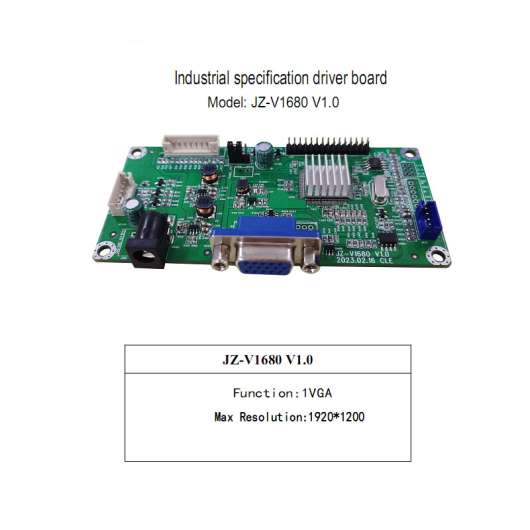

JZ-V1680 driver board with VGA input and LVDS output interface Ideal for industrial displays, LCD monitors and digital signage solutions Compatible with various LCD panels
| Model | JZ-V1680 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | 1 VGA channel |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+65℃ |
| storage temperature | -20℃～+65℃ |
| size | 106.78 x 50.11 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteJZ-V1680 Driver Board - VGA to LVDS Converter Board | Industrial Display Control is a LCD controller board for industrial monitors, kiosks, embedded systems and test equipment. IDT Display supports samples, replacement evaluation and volume procurement.
Stock: Sufficient MOQ: 1 piece. Price changes with quantity and exchange rate; request the latest real-time quotation and lead time.
Confirm the complete suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Latest Price and Datasheet
Sufficient stock is available and MOQ is 1 piece. Final price and lead time are reconfirmed for the required quantity.
Yes. Send the original model and application requirements for engineering review.
Product Overview
This driver board is mainly used to support TFTLCD LCD screens. The driver board comes with 1 VGA channel and supports LVDS output interface. The motherboard adopts MTK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification components with good working performance.
*The working temperature range is -20 to 65 ℃.
*Optional addition of automatic photosensitive control.
*Supports a maximum resolution of 1920x1200.
*Can receive remote control function.
*The basic resolution supports up to 85Hz (if the LCD screen used can work at 85Hz).
*Support serial protocol control.
2.Product Features
display output
Maximum resolution:
Max：1920x1200
Output interface:
Single/Dual/LVDS
Support signal
Simulate RGB:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Key
Power,Menu,Exit,Plus,Minus
Menu type
Graphic menu
Language support
Supports 16 languages including Chinese and English
Functional operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/ColorTemp.
PC
Clock
Phase
Hposition
Vposition
Autoconfigure
Power Supply
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

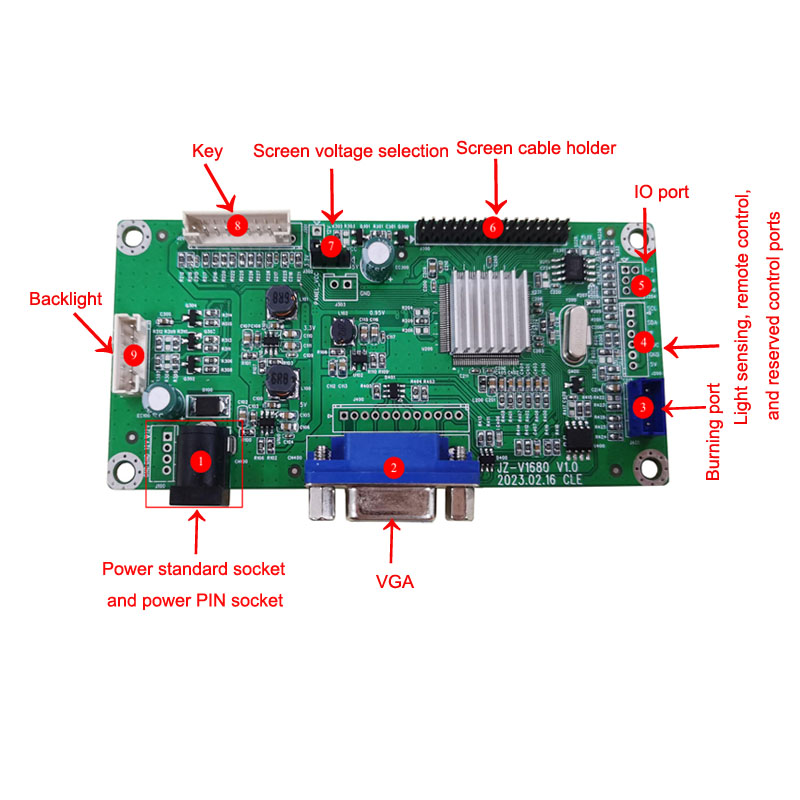

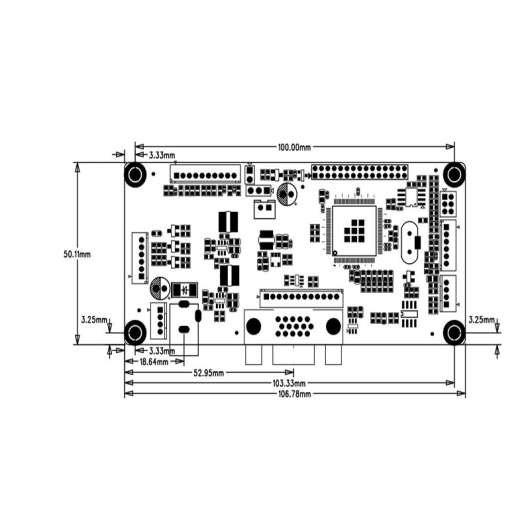

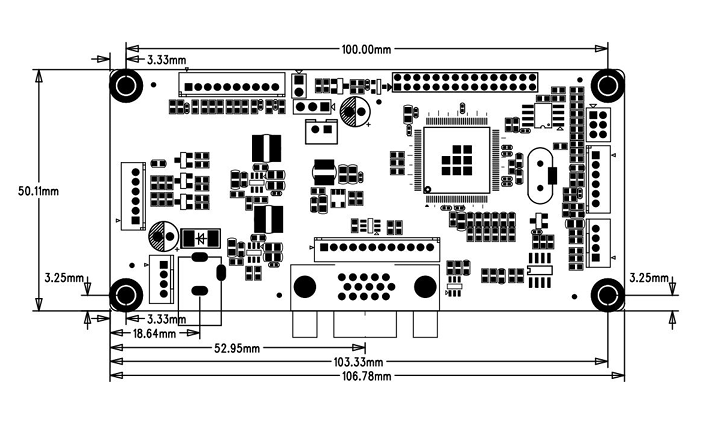

4.Size Description
