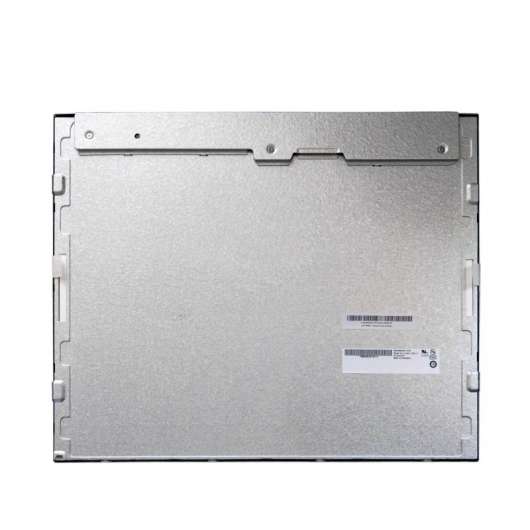

Name: AUO 19 inch 1280x1024 TFT LCD Panel For Industry G190ETN01.0 with 350 nits
Brand: AUO
SKU: G190ETN01.0

AUO 19 inch 1280x1024 TFT LCD Panel For Industry G190ETN01.0 with 350 nits

AUO G190ETN01 0 Application DetailsBasic Detail :ManufacturerAUOModel NameG190ETN01 0Panel Typea-Si TFT-LCD , LCMModel

Model	G190ETN01.0
Brand	AUO
Size	19inch
Resolution	1280*1024
Brightness	350 cd/m²
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	0 ~ 50 °C
Production State	Discontinued

Click For Price

AUO G190ETN01.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G190ETN01.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	19inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight，Matte,Upside I/F

AUO G190ETN01.0 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	3.6/1.4 (Typ.)(Tr/Td) (ms)
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	93% coverage
	Adobe RGB	72% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190ETN01.0 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*1024 [SXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W*H)	0.098*0.294 mm	Pixel Pitch(W*H)	0.294*0.294 mm [86PPI]
Physical Size :	Active Viewing(mm)	376.32(W)*301.056(H) mm	Outline Dim.(mm)	396324 mm (HV)
Physical Size :	Bezel Area	380.32(W)*305.06(H) mm	Outline Depth	11.7 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	5:4(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.80Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO G190ETN01.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	14.5W (Typ.)

AUO G190ETN01.0 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	0.94/1.1A (Typ./Max.)
	Consumption		4.7/5.5W (Typ./Max.)			Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Type		Connector			Position	Rear
Connector Detail :	Brand	Model		Pin Pitch	Pins			Amount	Configuration
	JAE	FI-XB30SSLA-HF15		1.0 mm	30 pins			1 pcs	LVDS-30P2C8B-180A

AUO G190ETN01.0 Backlight Details

Lamp Features :	Lamp Type		WLED		Quantity		12S4P	Position		Edge light type (Bottom side)
	Exchange		-		Lamp Shape		4 strings	Lamp Life		30K(Min.) Hours
Lamp Electrical :	Voltage Input		41.0/43.2V (Typ./Max.)		Current Input		60mA (Typ.)
	Consumption		9.8W (Typ.)
Interface Features :	Position		Rear		Physical Type		Connector
Backlight Driver :	No
Interface Detail :	Brand	Model		Pin Pitch		Pins			Amount		Configuration
	E&T	3707K-S06N-01R		1.0 mm		6 pins			1 pcs		BLE-6PINS-CCAACC

AUO G190ETN01.0 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	13 pcs / box	26.69 Kgs (Max.)	409367475mm (LWH)
