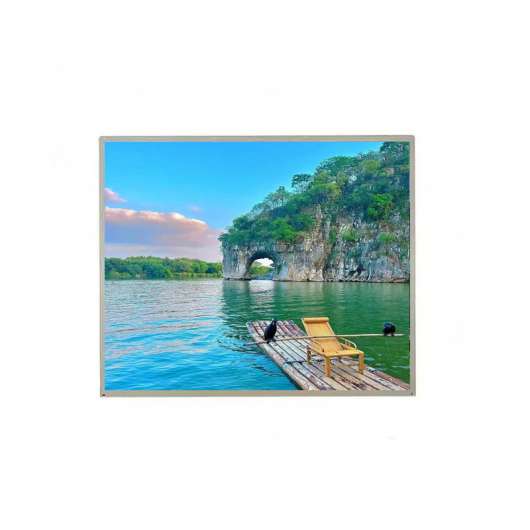

G190EG02 V0 1280*1024 lcd display panel AUO19 inch tft lcd screen WLED

AUO  G190EG02 V0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G190EG02 V0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	G190EG02 V.0
	Panel Size	19inch	Designed For	Industrial,Medical Imaging
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	High Brightness,Life>=50K hours,With LED Driver,WLED Backlight,Upside I/F,Matte


AUO  G190EG02 V0 Optical Details

Basic Information :	Luminance	600 cd/m² (Typ.) (Typ.)	Contrast Ratio	2000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	MVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit )
	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	69%	sRGB	92% coverage
	Adobe RGB	71% coverage	DCI-P3	72% coverage
	Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


AUO  G190EG02 V0 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*1024 [SXGA]	Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.098*0.294 mm	Pixel Pitch(W×H)	0.294*0.294 mm  [86PPI]
Physical Size :	Active Viewing(mm)	376.32(W)*301.056(H) mm	Outline Dim.(mm)	396*324 mm (H*V)
	Bezel Area	380.32(W)*305.06(H) mm	Outline Depth	14.3/21.85 (Typ./Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
	Aspect Ratio	5:4(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	2.00/2.10Kgs (Typ./Max.)	Surface	Antiglare, Hard coating (3H)


AUO  G190EG02 V0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	55W (Typ.)


AUO  G190EG02 V0 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	1.5/1.8A (Typ./Max.)
	Consumption		7.5/9.0W (Typ./Max.)			Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Type		Connector			Position	Rear
Connector Detail :	Brand	Model		Pin Pitch	Pins			Amount	Configuration
	STM	MSBKT2407P30HB		1.0mm	30 pins			1 pcs	LVDS-30P2C8B-190A


AUO G190EG02 V0 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

-

Position

Edge light type (Top and Bottom)

Exchange

-

Lamp Shape

-

Lamp Life

50K(Min.) Hours

Interface Features :

Position

Rear

Type

Connector

Backlight Driver :

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

HRS

DF14A-15P-1.25H

1.25mm

15 pins

1 pcs

Driver Electrical :

Input Current

3.96A (Typ.)

Input Voltage

12.0V (Typ.)

Consumption

47.5/51W (Typ./Max.)


AUO G190EG02 V0 Packing Details

Package Box :	Amount	Size (L*W*H)	Weight
	6 pcs / box	476*274*413 mm	16.5 Kgs
