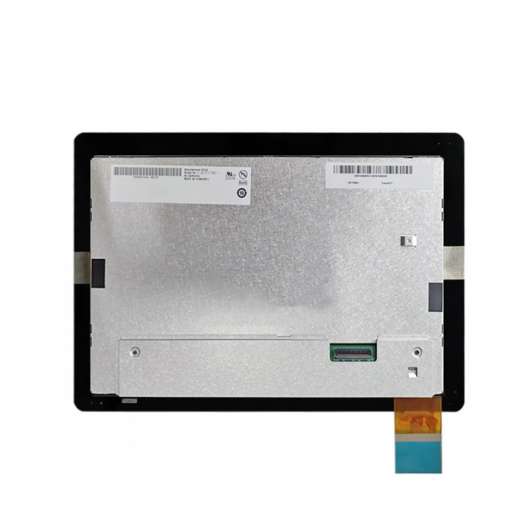

10.1 inch 1280x800 G101EVT05.1 LCD Monitors

10.1 inch 1280x800 G101EVT05.1 LCD Monitors Touch Screen

1、AUO G101EVT05 1 Application DetailsBasic Info :Panel BrandAUOPanel ModelG101EVT05 1Diagonal Size10 1 "ApplicationIndustr

Model	G101EVT05.1
Brand	AUO
Size	10.1inch
Resolution	1280*800
Brightness	440cd/m2
Perspective	85/85/85/85
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

1、AUO G101EVT05.1 Application Details

Basic Info :	Panel Brand	AUO	Panel Model	G101EVT05.1
	Diagonal Size	10.1"	Application	Industrial
	Panel Type	a-Si TFT-LCD , LCM
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State	RoHS	Vibration Rating	-
Specific Features :	With Touch，WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F,6/8 bit,Matte

2、AUO G101EVT05.1 Mechanical Details

Pixel Features :	Pixel Format	1280(RGB)*800, WXGA	Dot Pitch	0.05650.1695 mm (HV)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.16950.1695 mm (HV) [149PPI]
Mechanical Size :	Display Area	216.96135.6 mm (HV)	Outline Dim.	-
Mechanical Size :	Outline Dim.	257.35(W)*175.5(H) mm	Outline Depth	7.6 (Typ.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style
Touchscreen :	TP Controller	With controller	Control Signal	I²C/USB (Android 6.1)
Touchscreen :	Touch Points	-	TP Technology	PCAP, Air Bonding
Other Detail :	Mass	350g (Max.)	Surface	Antiglare (Haze 3%), Hard coating (3H), Reflection 1.5% (Max.) Panel Cover With Cover Lens
Other Detail :	Panel Cover	With Cover Lens

3、AUO G101EVT05.1 Optical Details

Brightness	Brightness	440 cd/m² (Typ.)	Contrast Ratio	1300:1(Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	MVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	Uniformity	1.43 (Max.)(5 points)
1931 Color Gamut :	NTSC Ratio	47%	sRGB	66% coverage
	Adobe RGB	49% coverage	DCI-P3	49% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4、AUO G101EVT05.1 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No
Power Consumption :	6.65W (Typ.)

5、AUO G101EVT05.1 Backlight Details

Back-light Features :	Lamp Type	WLED	Amount	-	Life Time	50K(Min.) Hours
Back-light Features :	Replacement	-	Lamp Shape	-	Position	Edge light type
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	12V (Typ.)		Current Input	300/480mA (Typ./Max.)
Driver Electrical :	Consumption	3.6/5.76W (Typ./Max.)

6、AUO G101EVT05.1 Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	192/270mA (Typ./Max.)
Signal Electrical :	Consumption	0.63/0.89W (Typ./Max.)
Interface Features :	Type	Connector		Position	Down right of panel
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	FH41-40S-0.5SH(05)	0.5 mm	40 pins	1 pcs

7、AUO G101EVT05.1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	40 pcs / box	-	484328257 mm
