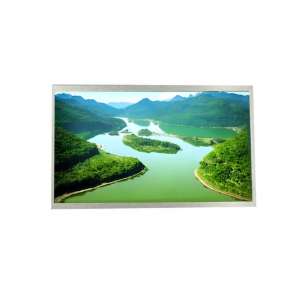

G101STN01.0 AUO 10.1 Inch TFT LCD Display Screen 1024*600 40 Pins LVDS Industrial Control Tablet LCD Panel 10.1 Inch LCD Module

G101STN01 0 AUO 10 1 Inch TFT LCD Display Screen 1024*600 40 Pins LVDS Industrial Control Tablet LCD Panel 10 1 Inch LCD Module

Model	G101STN01.0
Brand	AUO
Size	10.1inch
Resolution	1024*600
Brightness	250 cd/m²
Perspective	70/70/60/60 (Typ.)
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

AUO G101STN01.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G101STN01.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	10.1inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	-10~ 60 °C	ST Temperature	-30 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight， With LED Driver， Reverse I/F，6/8bit，Matte

AUO G101STN01.0 Optical Details

Basic Information :	Luminance	250 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	7/9 (Typ.)(Tr+Td) ms
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	47%	sRGB	65% coverage
	Adobe RGB	49% coverage	DCI-P3	48% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G101STN01.0 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*600, WSVGA			Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.0725*0.2088 mm			Pixel Pitch(W×H)	0.2175*0.2088 mm [117PPI]
Physical Size :	Active Viewing(mm)	222.72(W)*125.28(H) mm			Outline Dim.(mm)	235(W)*143(H) mm
	Bezel Opening(mm)	226.34(W)*128.1(H) mm			Overall Depth(mm)	4.9/5.2 (Typ./Max.) mm
Outline Features :	Form Style		Flat Rectangle	Shape Style
	Aspect Ratio		16:9 (H:V)	Orientation			Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	180g (Typ.)			Treatment	Antiglare, Hard coating (3H)

AUO G101STN01.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	2.53W (Typ.)

AUO G101STN01.0 Interface Detail

Signal Electrical :	Input Current	140/160mA (Typ./Max.)			Input Voltage	3.3V (Typ.)
	Consumption	0.53W (Max.)		Signal Interface			LVDS (1 ch, 6/8-bit)
Interface Features :	Position	Rear	Physical Type			Connector
Interface Detail :	Brand	Model	Pin Pitch		Pins	Amount	Pin Assignment
	I-PEX	20455-040E-12R	0.5mm		40pins	1 pcs

AUO G101STN01.0 Backlight Details

Lamp Features :	Lamp Type	WLED	Quantity		-	Position		Edge light type
	Exchange	-	Lamp Shape		-	Lamp Life		15K(Typ.) (Hours)
Driver Electrical :	Voltage Input	5.0/12.0/23.0V (Min./Typ./Max.)			Current Input	150/165mA (Typ./Max.)
	Consumption	2.0W (Max.)
Interface Features :	Position	-		Type			Included in panel signal interface
Backlight Driver :	With LED Driver

AUO G101STN01.0 Packing Details

Package Box :	Amount	Size (LWH)	Weight
Package Box :	35pcs / box	450375320mm	9.0 Kgs
